Product Details
＋

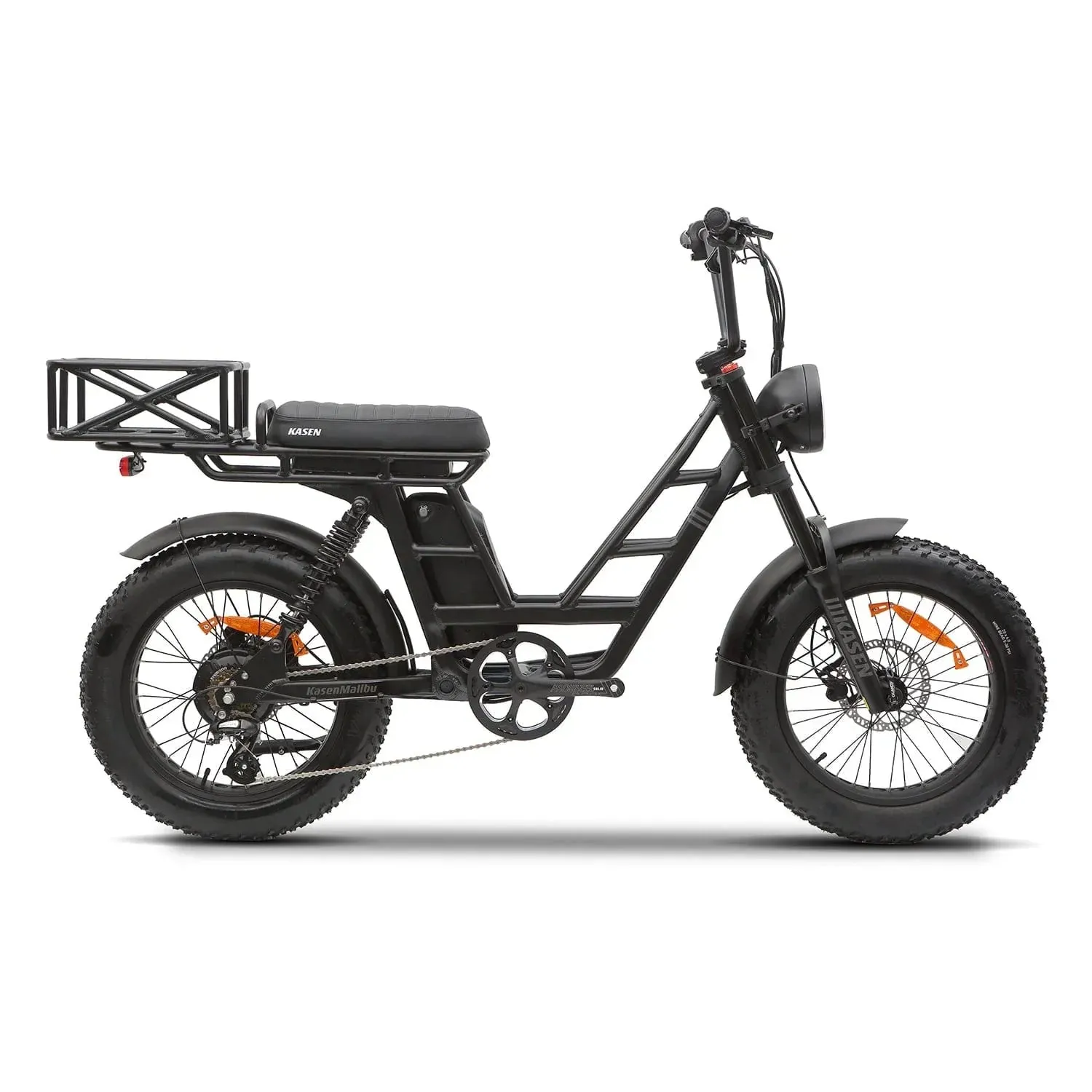

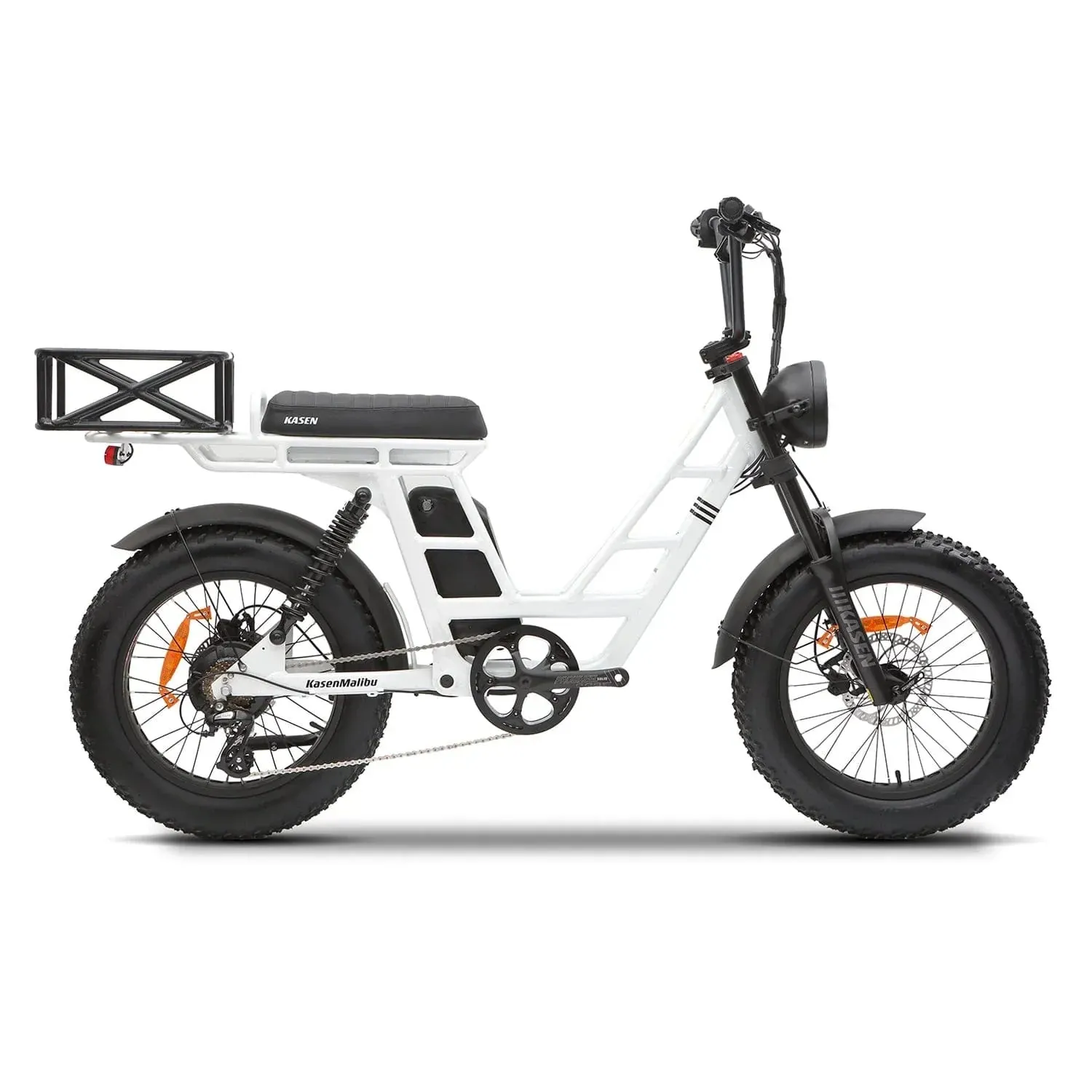

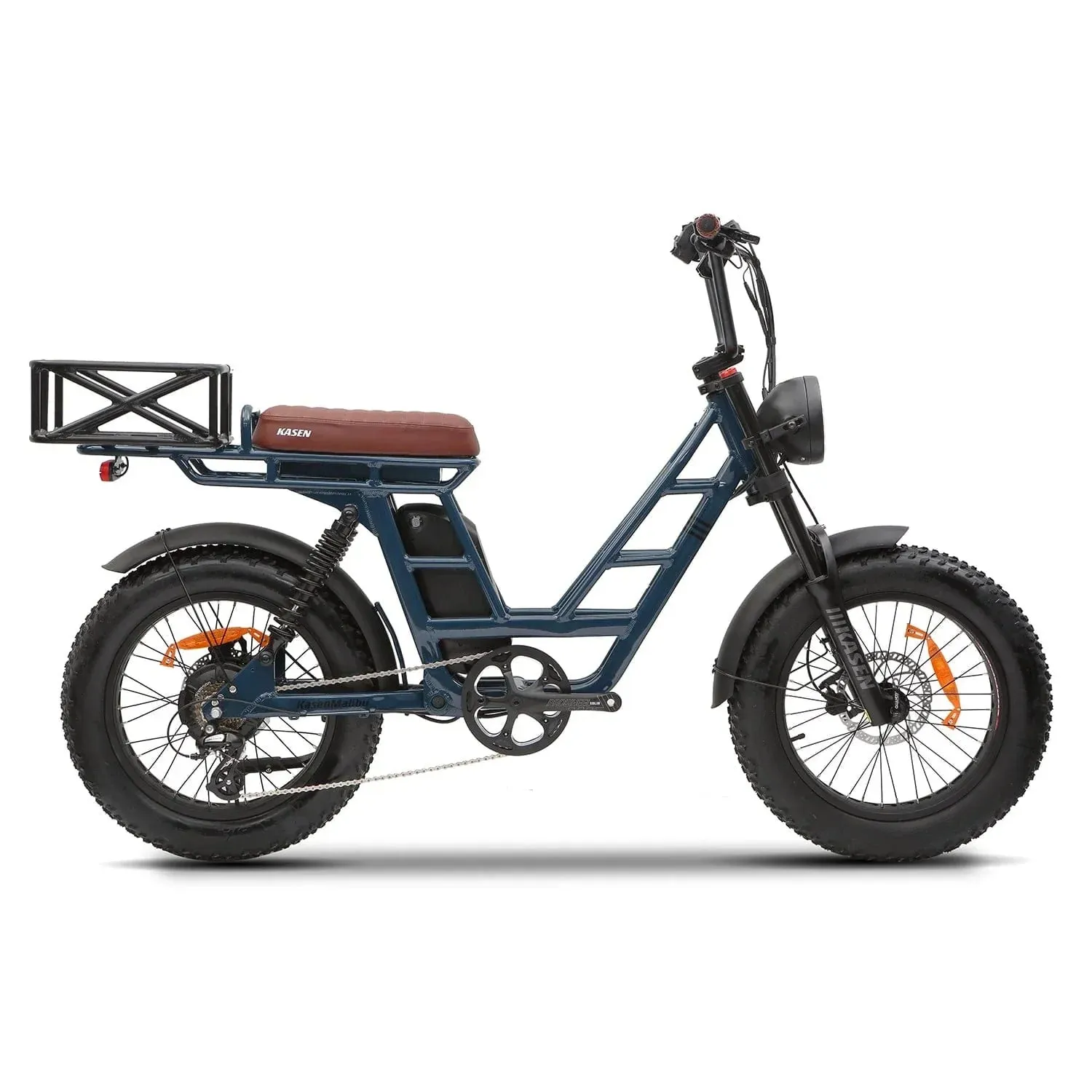

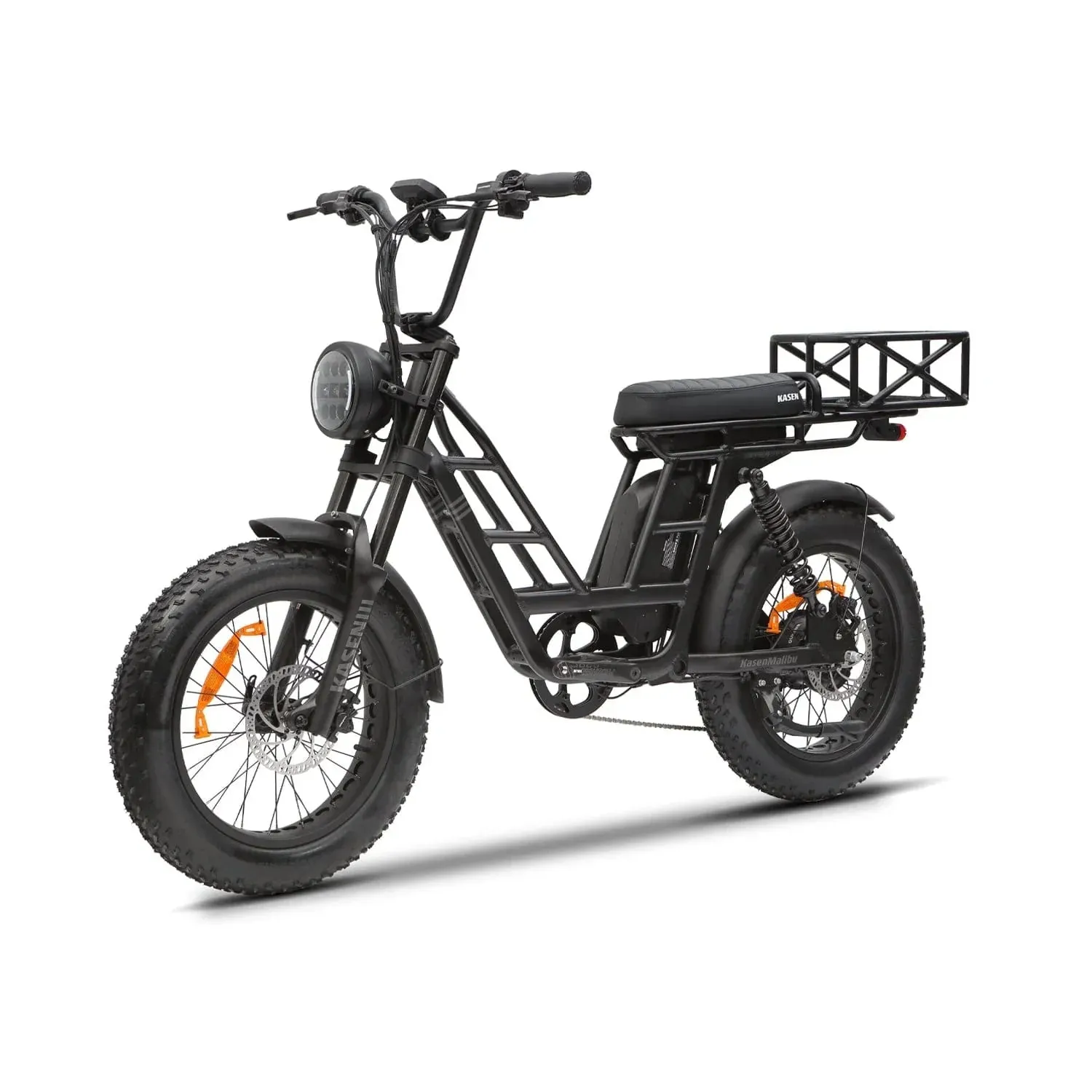

The KASEN Malibu Step Thru eBike is a Fat electric bike with a powerful 1000 w motor and a long distance 48v 17 ah battery. With 20 inch Fat tires, 7 Speeds and Hydraulic brakes this Electric Cargo eBike is a Class 2 - 3, with a top speed up to 25 - 28 mph. An optimal distance of 55 miles and charge time of 4 - 6 hrs. This KASEN Malibu Step Thru electric bike is 80lbs with a maximum cargo weight of 275lbs. The KASEN Malibu comes in the following colors: Black,White,Retro Blue.
| Category | Details |
|---|---|
| Motor | 1250W (Peak) 1000W (Sustained), 48V Brushless Rear Hub BAFANG Motor |
| Battery | Removable Internal Lithium-ion 48V, 17.5AH (840WH) SAMSUNG |
| Charger | 48V 3.0 Amp Smart Charger, 4-7 Hour Charge Time |
| Display | CloudDrive CDC6-PR02 Backlit LCD Display with USB |
| Controller | 48V, 1000W frame-integrated controller |
| Throttle | Thumb Throttle |
| Pedal Assist | Intelligent 5 level pedal assist with 24 magnet cadence sensor |
| Head Light | High output LED Headlight with turning lights |
| Tail Light | Red LED with turning light and brake light |
| Wiring | Water resistant connectors and wiring harness |
| Frame | 6061 Double-Butted Aluminum Alloy with Internal Battery |
| Fork | Hydraulic Fork, 100mm Travel, with lockout and preload adjustment |
| Brake | Tektro 180mm Front & 180mm Rear Hydraulic Disc Brake |
| Speed Gears | Shimano 7 Speed Shifter |
| Cassette | Shimano 14T-28T Cassette |
| Chain Wheel | KMC Rust Resistant Chain |
| Crankset | Prowheel 46T 170mm Crankset |
| Handlebars | Aluminum 22.2mm, 750mm Back Sweep 8.5 Degree |
| Grips | Durable Ergonomic Grips |
| Stem | Aluminum Alloy, 48mm Length, 22.2mm |
| Wheel Rim | Double Wall Aluminum 36h Front & Rear |
| Tires | KENDA 20X4.0 Front & Rear Tires |
| Saddle | Kasen |
| Pedals | Wellgo Aluminum Alloy pedals |
| Rear Rack | 55lbs Rated Loading Weight |
| Fenders | Full coverage front and rear |
| Speed | Up to 28 MPH on Pedal Assist and 25 MPH on Throttle |
| Range | 45-55 miles |
| Charge Time | 4-7 Hour Charge Time |
| Weight | 80 lbs |
| Weight Limit | Maximum payload capacity 275 lbs |
