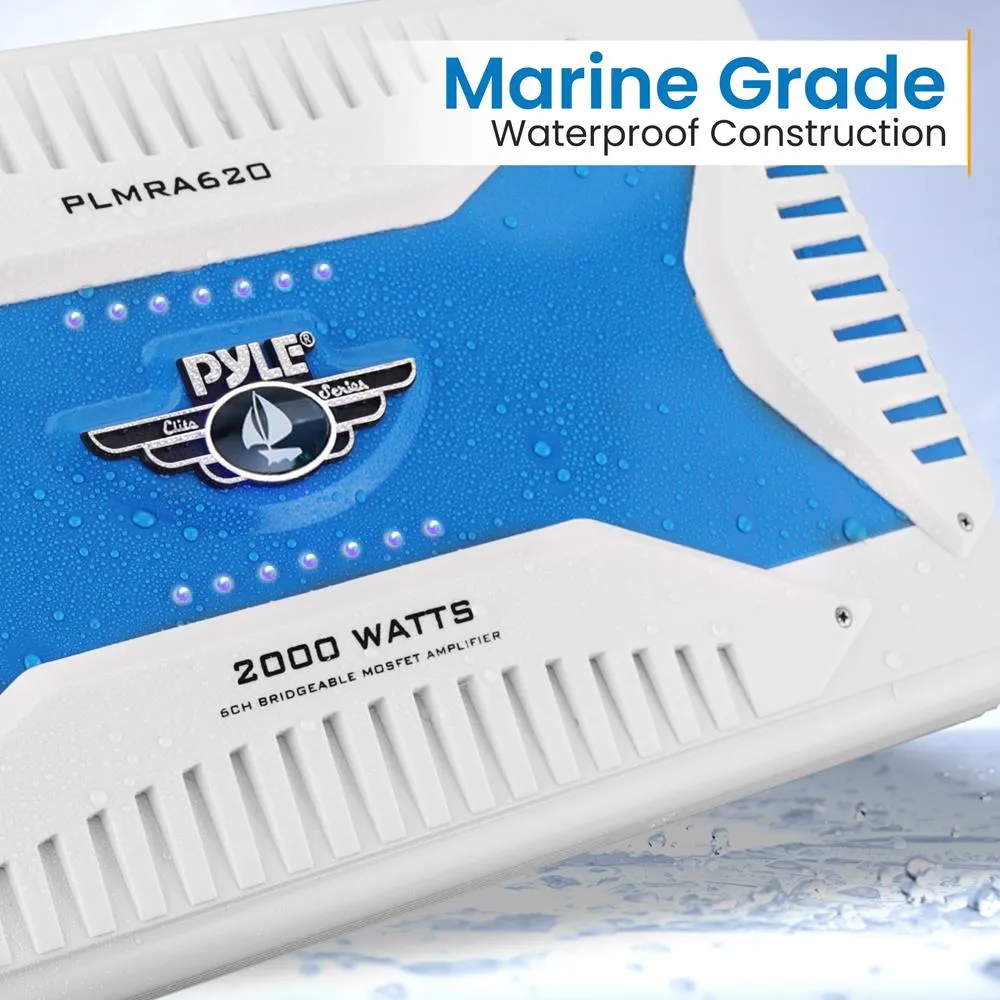

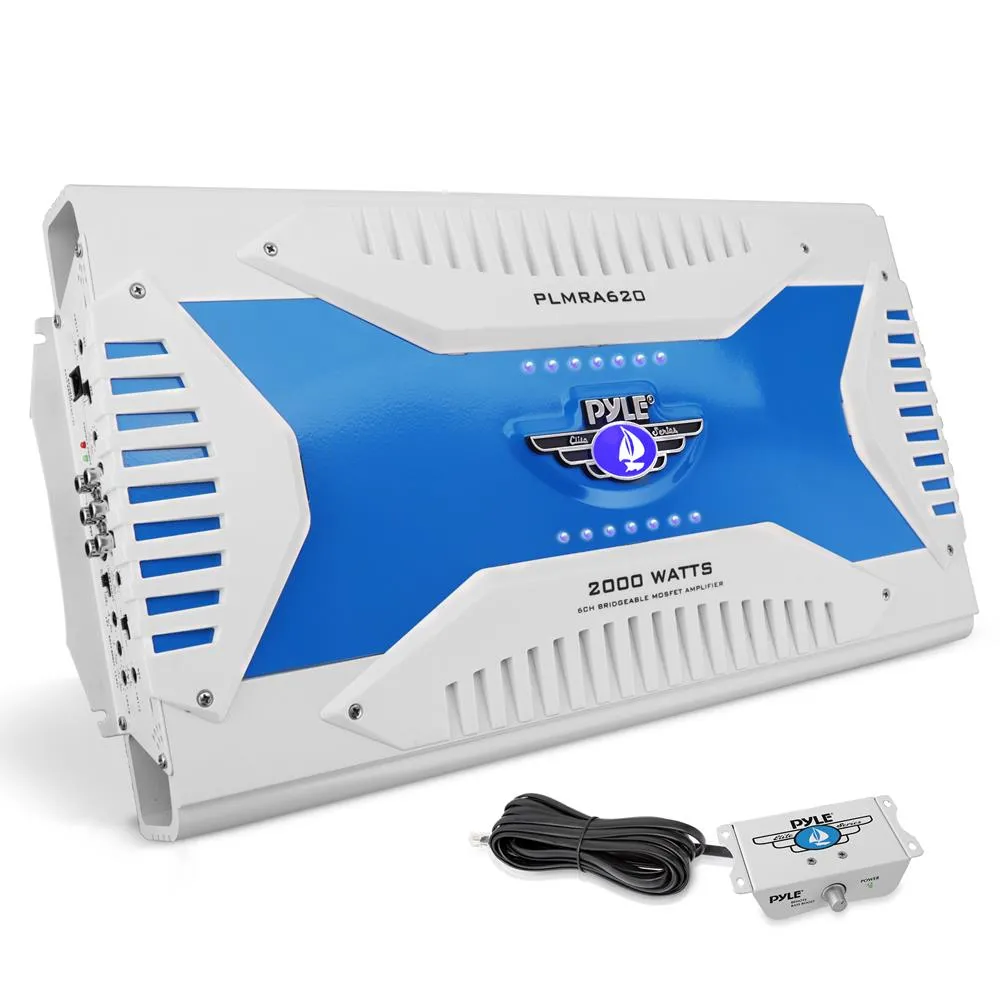

The Pyle Elite Series Amps provide waterproof power for all of your speaker needs. The marine grade waterproof construction and high-power efficiency ratings provide performance and reliability -- rain or shine! These multi-channel amplifiers are perfect for the back yard, boat or even by the pool! Additional features include MOSFET power supplies, built-in electronic circuitry protection, heavy-duty aluminum heat sinks and more. Enjoy versatile waterproof performance and next level sound amplification with the Pyle Elite Series Amps. (Models: PLMRA200, PLMRA400, PLMRA420, PLMRA620, PLMRA820).

• Features: - MOSFET Power Supply - RCA (L/R) Input Connector Jacks - Power & Protection LED Indicators - 4 x 250W 2 x 500W MAX @ 4 Ohms - Frequency Response: 15 - 30kHz - T.H.D.: <0.04%
• Bridgeable Audio Amplifier - Marine Grade Construction - Variable High Pass, Low Pass & Bass Boost Controls - Built-in Thermal, Overload & Speaker Short Protection - 4 x 175W 1 x 400W RMS @ 2 Ohms - Input Impedance: 10k Ohm - Power Supply: DC 12V
• Tri-Mode Configurable - Waterproof Marine Rating IP-01 - Remote Bass Boost Controller Connector Jack - Heavy Duty Aluminum Alloy Heatsink - 2 x 400W 1 x 900W MAX @ 4 Ohms Bridged - Input Sensitivity: 250mV
• 6-Channel Amp System - Hi/Lo Electronic Crossover Network - Gold-Plated Speaker Output Terminal Connectors - Remote Turn ON/OFF Technical Specs: - Amplifier Class: AB - Variable Bass Boost: 0 /- 18dB @ 60Hz
• 2 Ohm Stereo Stable - Adjustable Input GAIN Level Controls - Anti-Thump Delay Circuitry - 4 x 100W 2 x 250W RMS @ 4 Ohms - Fuse Type: 40A x 2 - S/N Ratio: >95dB - Dimensions (L x W x H): 19.6'' x 10.9'' x 2.7''

DETAILS

Features:

• Bridgeable Audio Amplifier
• Tri-Mode Configurable
• 6-Channel Amp System
• 2 Ohm Stereo Stable
• MOSFET Power Supply
• Marine Grade Construction
• Waterproof Marine Rating IP-01
• Hi/Lo Electronic Crossover Network
• Adjustable Input GAIN Level Controls

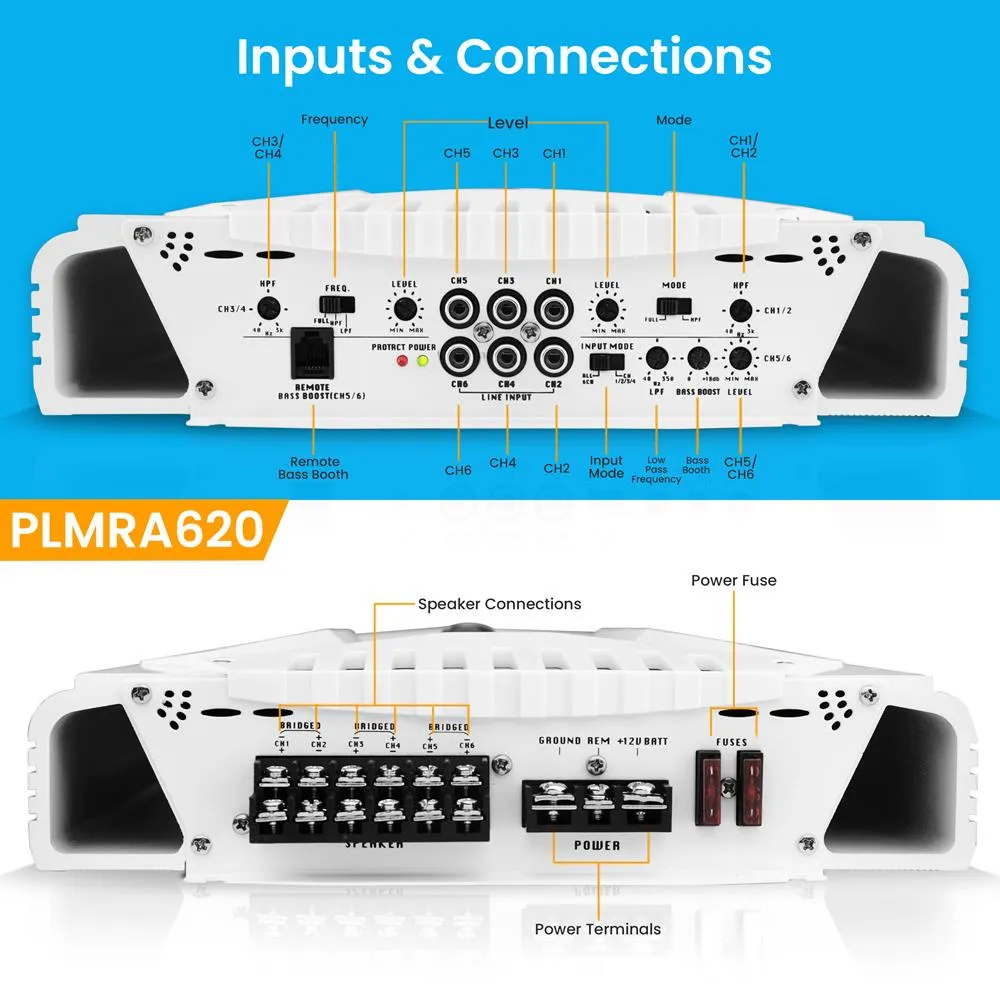

• RCA (L/R) Input Connector Jacks
• Variable High Pass, Low Pass & Bass Boost Controls
• Remote Bass Boost Controller Connector Jack
• Gold-Plated Speaker Output Terminal Connectors
• Anti-Thump Delay Circuitry
• Power & Protection LED Indicators
• Built-in Thermal, Overload & Speaker Short Protection

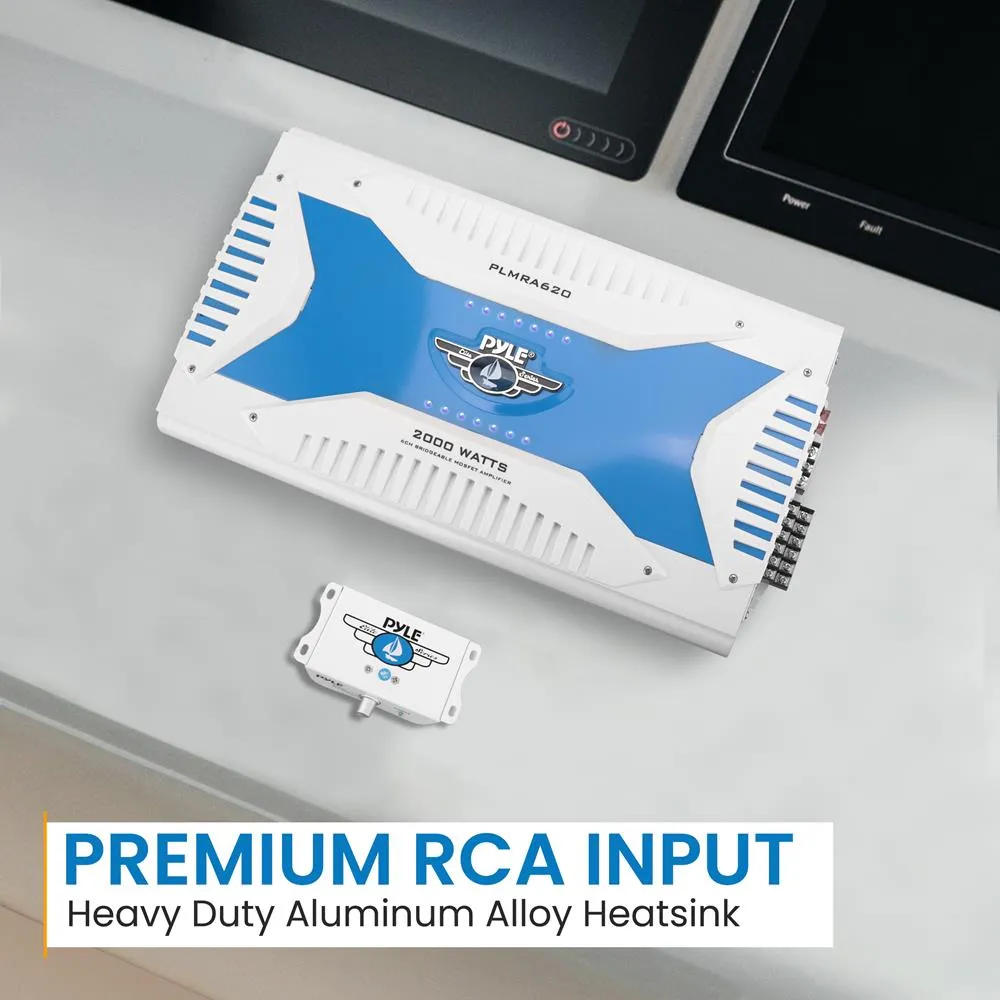

• Heavy Duty Aluminum Alloy Heatsink
• Remote Turn ON/OFF

Technical Specs:

• 4 x 100W 2 x 250W RMS @ 4 Ohms
• 4 x 250W 2 x 500W MAX @ 4 Ohms
• 4 x 175W 1 x 400W RMS @ 2 Ohms
• 2 x 400W 1 x 900W MAX @ 4 Ohms Bridged
• Amplifier Class: AB
• Fuse Type: 40A x 2
• Frequency Response: 15 - 30kHz
• Input Impedance: 10k Ohm
• Input Sensitivity: 250mV
• Variable Bass Boost: 0 /- 18dB @ 60Hz
• S/N Ratio: >95dB
• T.H.D.: <0.04%
• Power Supply: DC 12V

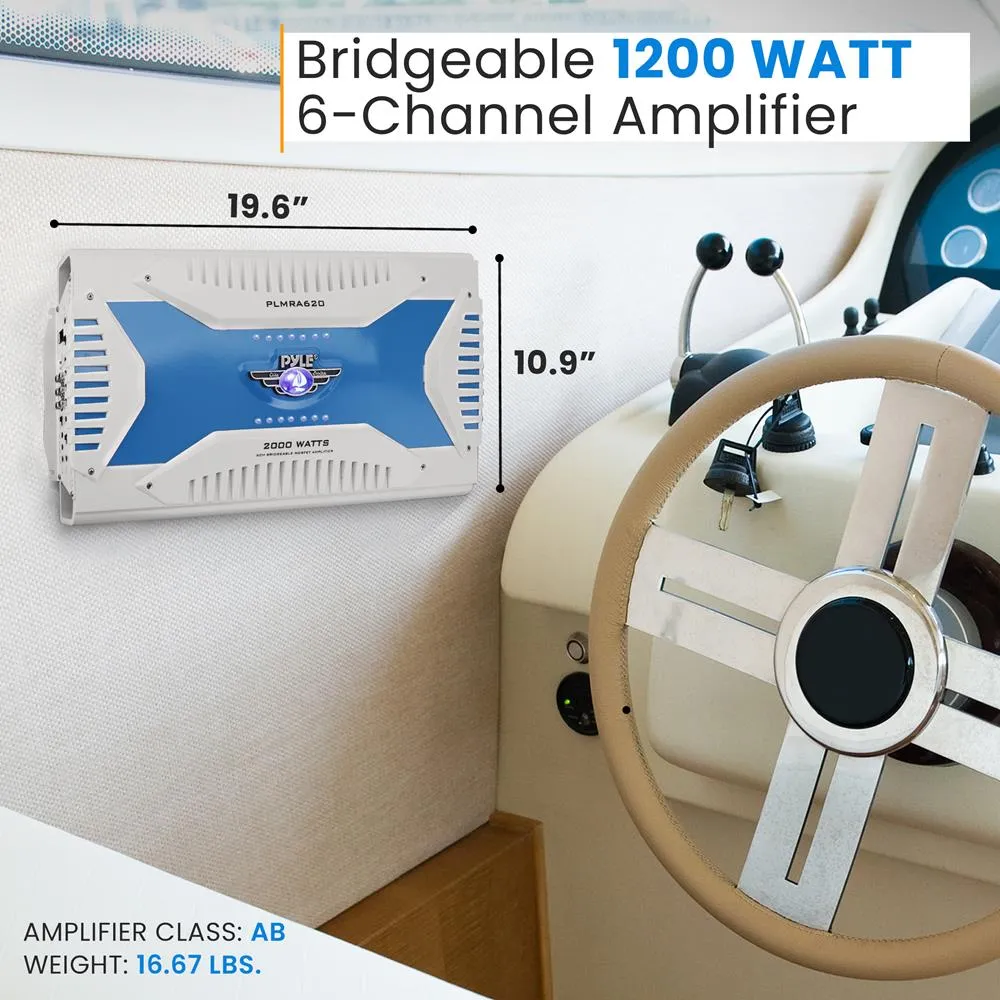

• Dimensions (L x W x H): 19.6'' x 10.9'' x 2.7''
