Product Details
＋

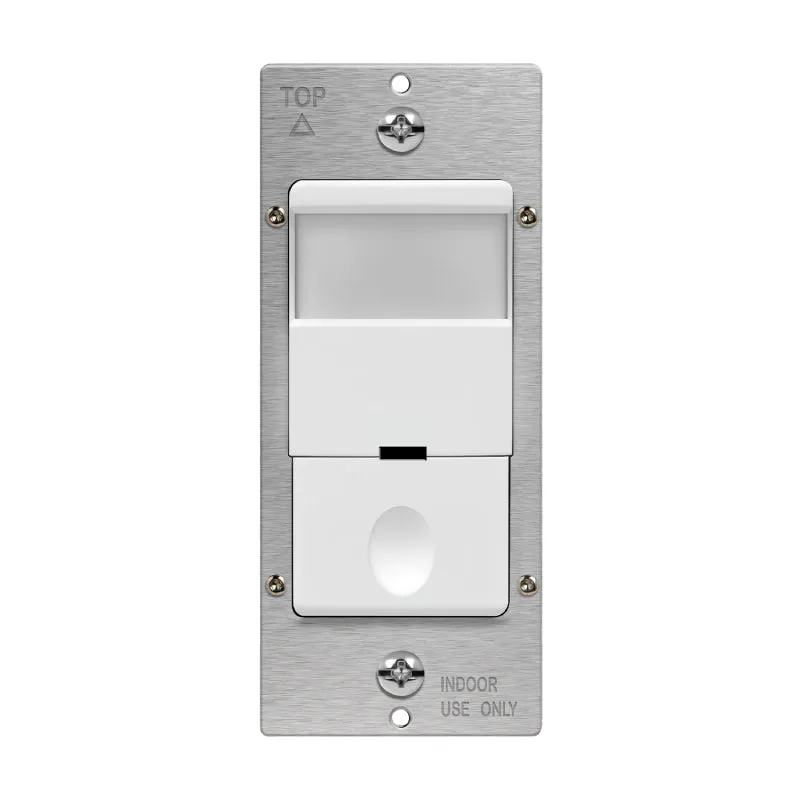

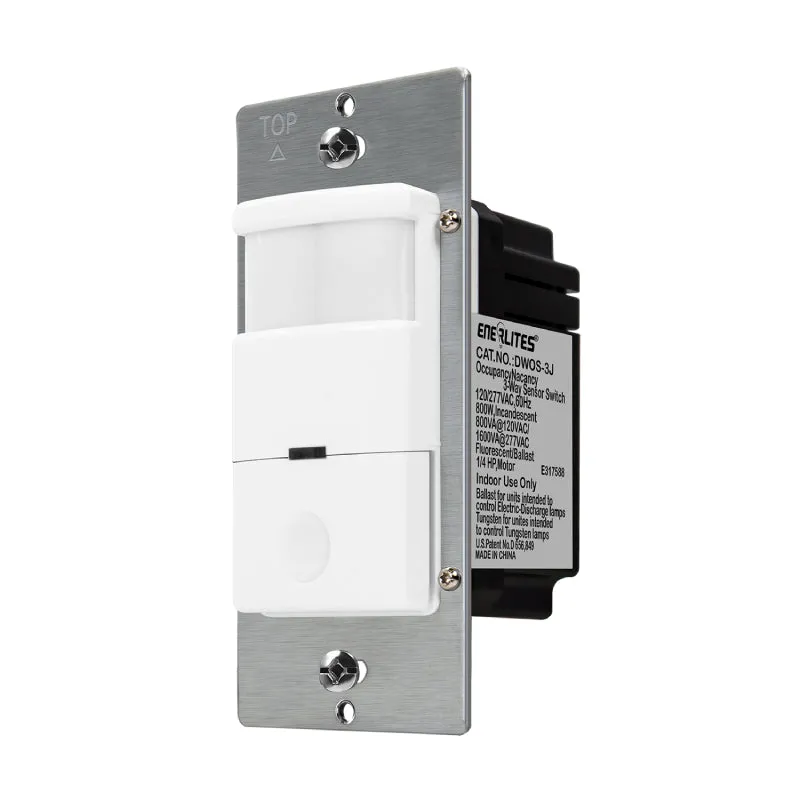

The ENERLITES DWOS-3J is a motion sensor wall switch that operates lights using passive infrared (PIR) technology.
Features
- Color: White
- Passive Infrared Technology (PIR)
- 180° field of view, up to 1200 sq.ft.
- Adjustable time delay: 15 sec to 30 min
- Input voltage: 120/277VAC, 60 Hz
- Motor: 1/4 HP @ 120VAC
- Incandescent: 800W @ 120VAC
- Fluorescent: 800VA @ 120VAC / 1600VA @ 277VAC
- LED: 150W
- 2 modes for lighting control: occupancy (auto ON/auto OFF) & vacancy (manual ON/auto OFF)
- Available colors: white, ivory
- Single pole or three-way
- Secured ground wire required
- Five-year limited warranty
