Name: Single-Axis CNC Servo Stepper Motor Motion Programmable Controller
SKU: 1032642

Product Details ＋

DESCRIPTION

Number of controlled axis: Single axis; can achieve a variety of complex operation: positioning control and non-positioning control;
The maximum output frequency: 40KHZ;
Output frequency resolution: 1Hz;
Programmable maximum number of rows: 99;

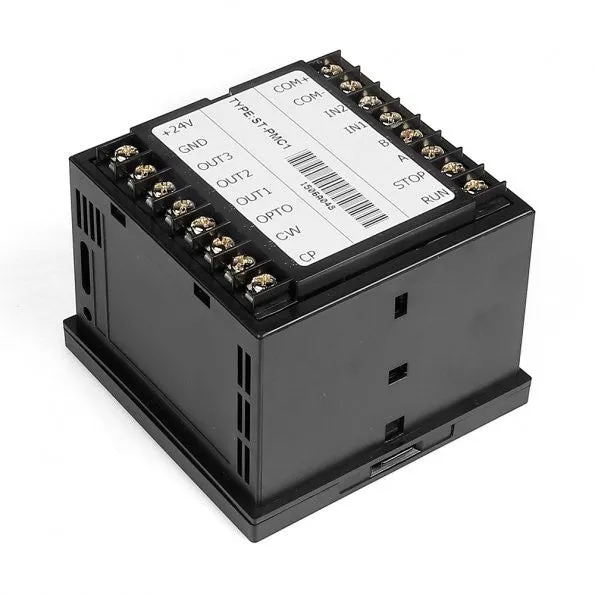

Signal input: 6 (optical isolation);
Signal output: 3 (optical isolation);
A continuous displacement range: -7,999,999 ~ 7,999,999;
Operating state: Autorun mode, manual operation, the program edit mode, parameter setting status;
Lifting speed curve: 2 (optimization);

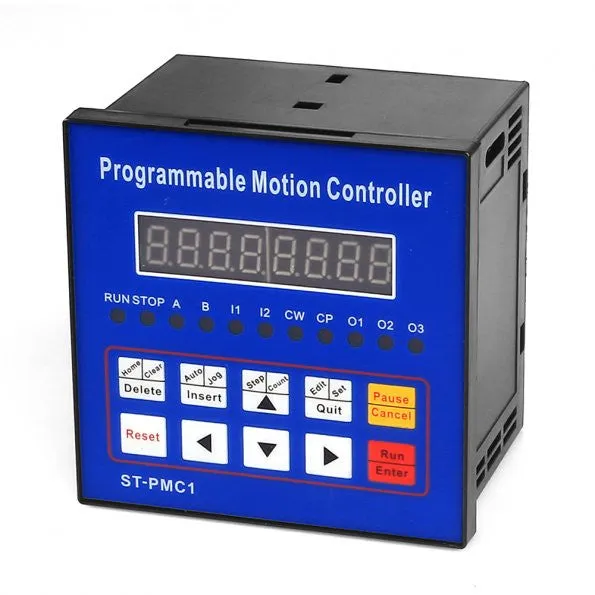

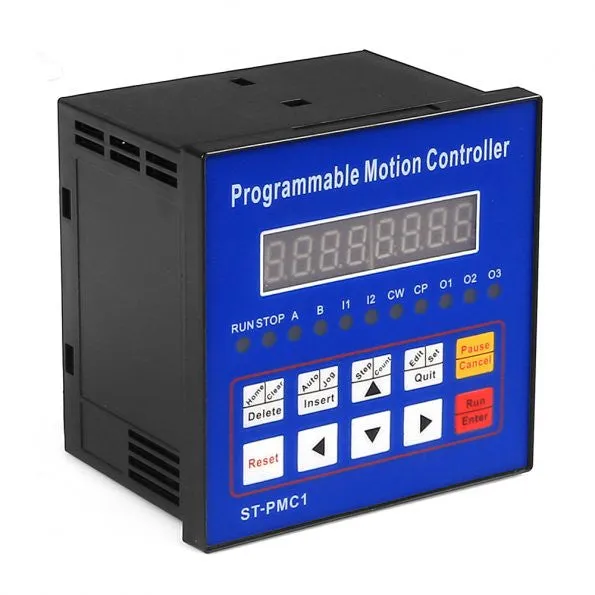

Display digits: 8 digital display, manual / automatic status display, run / stop status display, the number of steps / counts / procedures display, edit the program, parameter display, input / output status display, pulse and direction display ;
Autorun feature: You can edit, you can control the start and stop automatically run through the panel buttons and processing and other operations at the terminal level;
Manual operation functions: position adjustments (manual jog speed and jog the number of steps can be set);
Parameter setting function: Starting frequency, acceleration and deceleration curve, reverse clearance, manually run length, manual speed, back to zero speed and interrupt jump the line all can be set;
Program editing functions: You can insert, delete, modify the program. The controller can identify the error Instruction;
Return to Zero features: It can be from the positive and negative directions, automatic return to zero
The number of programming instructions: 14 instruction;
Outside the operating functions: interrupt operation through parameter setting and switch connected to the terminals A and B;
Power supply:DC24V;
