Product Details
＋
The JHEMCU VTX 30-800 is a video transmitter (VTX) designed for use in FPV (First Person View) systems on multirotor aircraft, such as drones or quadcopters.
Voltage Input Range: The VTX is designed to operate within a voltage input range of 2-6S LiPo batteries. This makes it compatible with various battery configurations, from 2 to 6 cells in series.
Frequency: The VTX operates at a frequency of 5.8GHz. This is a common frequency for FPV systems, and it's widely used in the FPV community.
IRC Tramp Protocol: The mention of "IRC Tramp" indicates that the VTX supports the IRC Tramp protocol. IRC Tramp is a popular communication protocol used in VTXs to allow for remote control and adjustment of VTX settings, such as frequency and power output, using a compatible transmitter or flight controller.
Mounting Hole Pitch: The VTX is designed with a 30x30mm mounting hole pitch. This size is common in the FPV community and is suitable for mounting on standard 30.5mm x 30.5mm flight controller stacks.
LED Display: The VTX may include an LED display or other visual indicators to provide information about the current settings, such as selected frequency and power level.
SMA Connector: The VTX likely features an SMA connector, which is a standard connector for connecting antennas to the VTX.
Here are the key Features of this VTX:
Output Power Range: The VTX supports a variable output power range from 30mW to 800mW. This flexibility allows the user to adjust the output power based on the flying conditions and desired range.Voltage Input Range: The VTX is designed to operate within a voltage input range of 2-6S LiPo batteries. This makes it compatible with various battery configurations, from 2 to 6 cells in series.
Frequency: The VTX operates at a frequency of 5.8GHz. This is a common frequency for FPV systems, and it's widely used in the FPV community.
IRC Tramp Protocol: The mention of "IRC Tramp" indicates that the VTX supports the IRC Tramp protocol. IRC Tramp is a popular communication protocol used in VTXs to allow for remote control and adjustment of VTX settings, such as frequency and power output, using a compatible transmitter or flight controller.
Mounting Hole Pitch: The VTX is designed with a 30x30mm mounting hole pitch. This size is common in the FPV community and is suitable for mounting on standard 30.5mm x 30.5mm flight controller stacks.
LED Display: The VTX may include an LED display or other visual indicators to provide information about the current settings, such as selected frequency and power level.
SMA Connector: The VTX likely features an SMA connector, which is a standard connector for connecting antennas to the VTX.
Technical Details

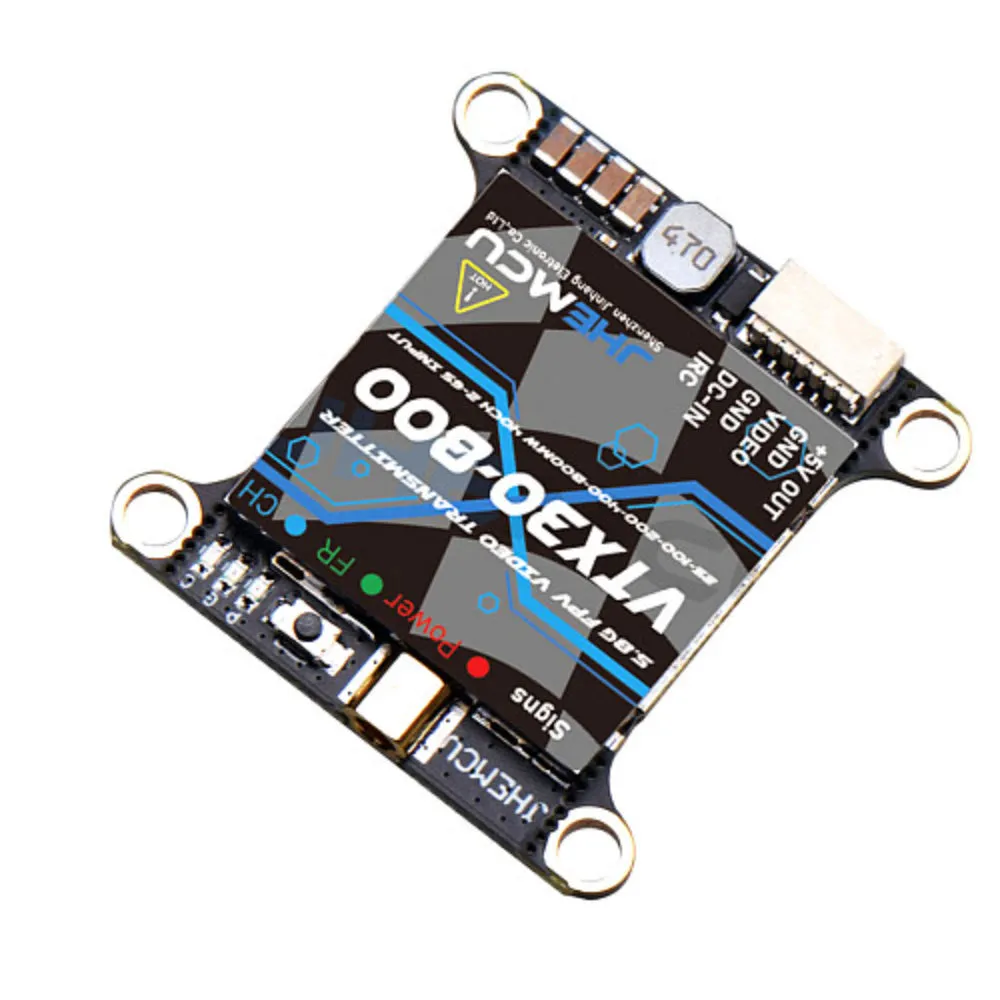

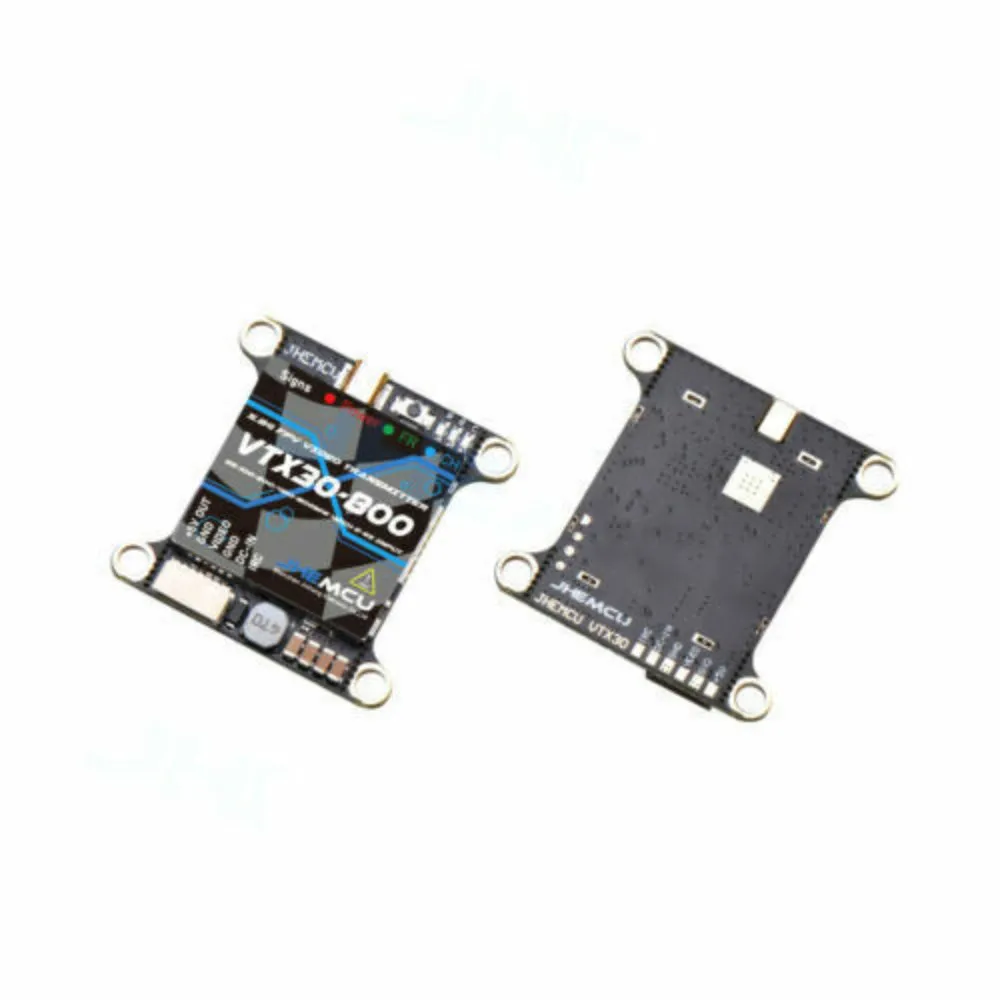

- JHEMCU VTX30-800 5.8GHZ VTX
- PIT/25MW/100/200/400/800MW five-speed adjustable power, 40 frequency points
- Power supply: 7-26V (2-6S)
- Power: 2.5W
- Hole distance: 30.5*30.5MM, diameter M3
Physical Attributes
- Hole distance: 30.5*30.5MM
- Weight (gm): 11

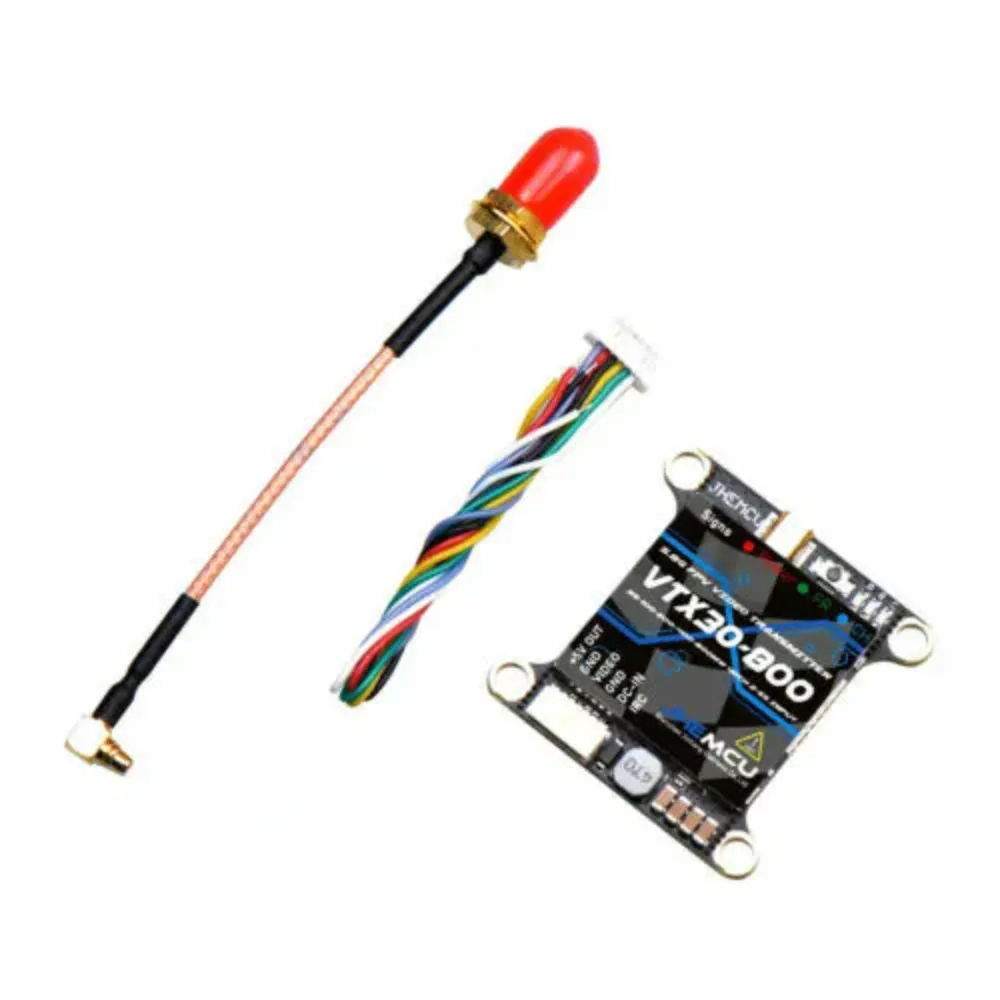

Package Includes
- 1 x VTX30-800.
- 1 x MMCX-SMAJl cable.
- 1x 6P*1.0MM plug cord.
