Product Details
＋

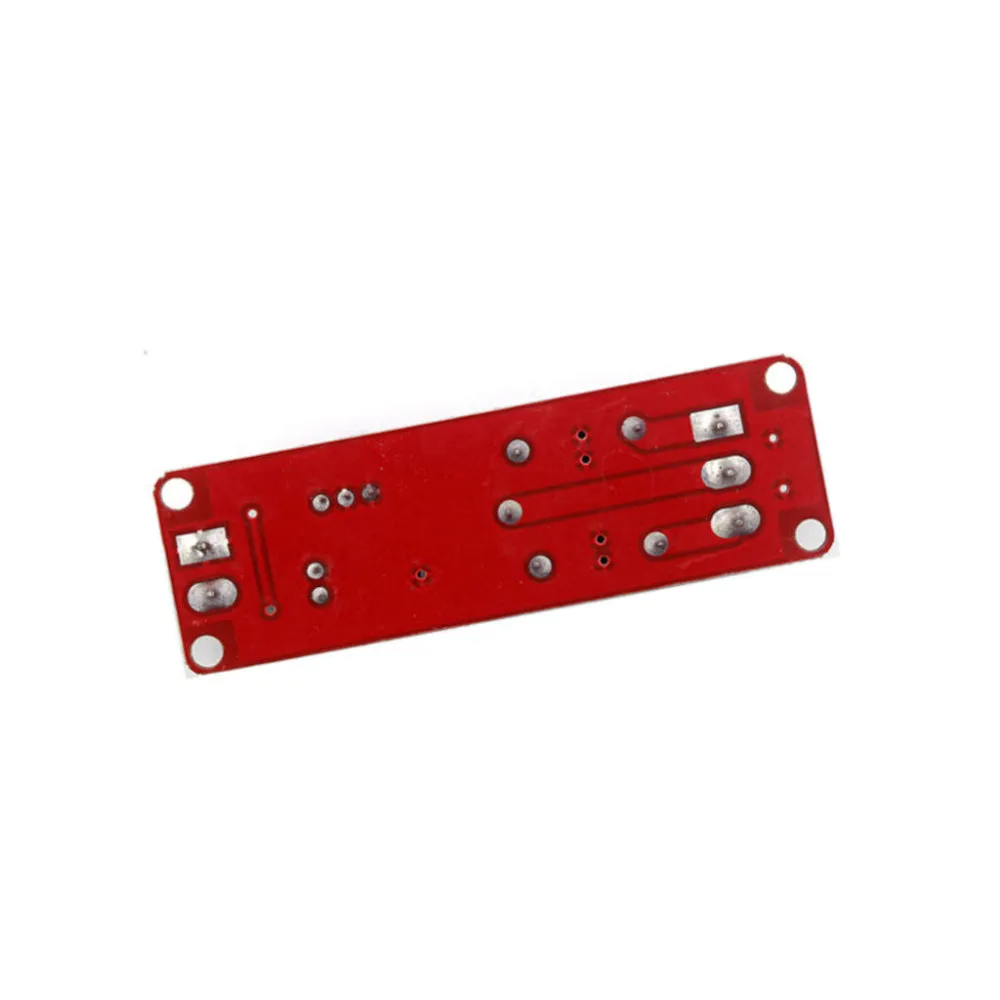

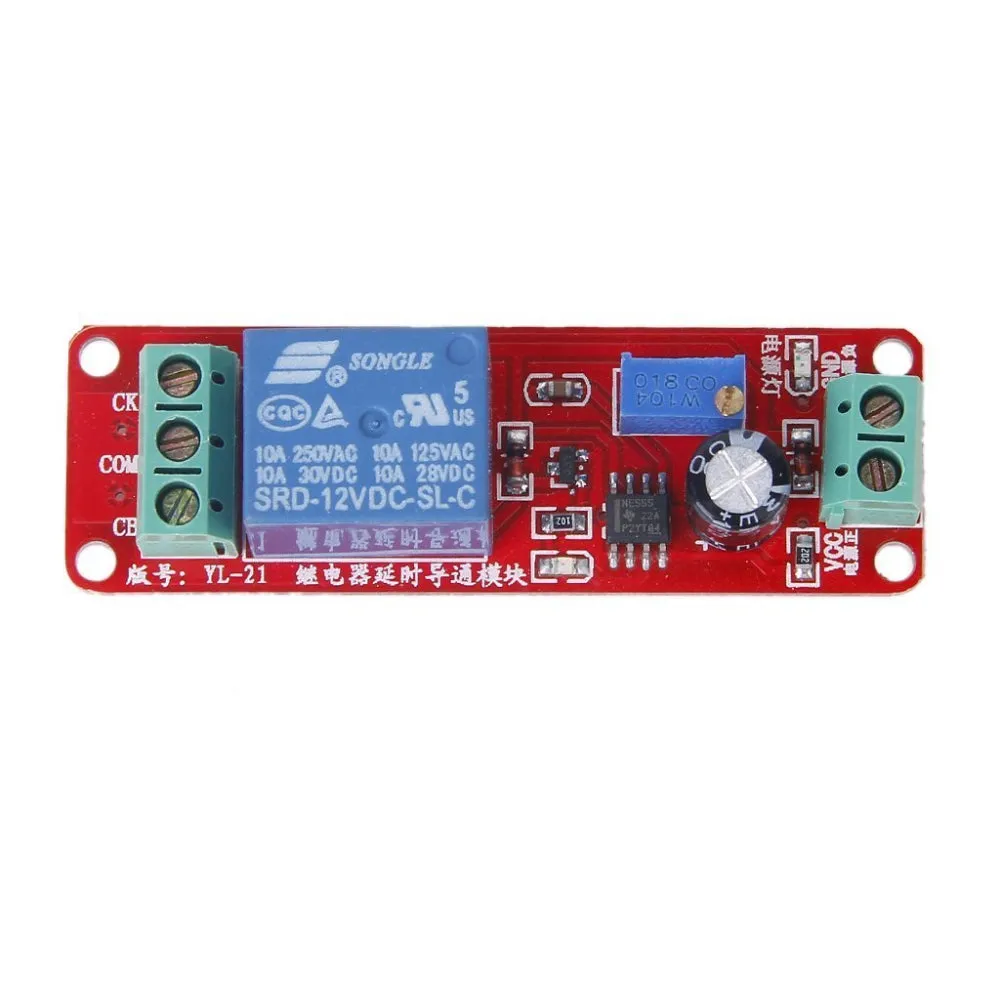

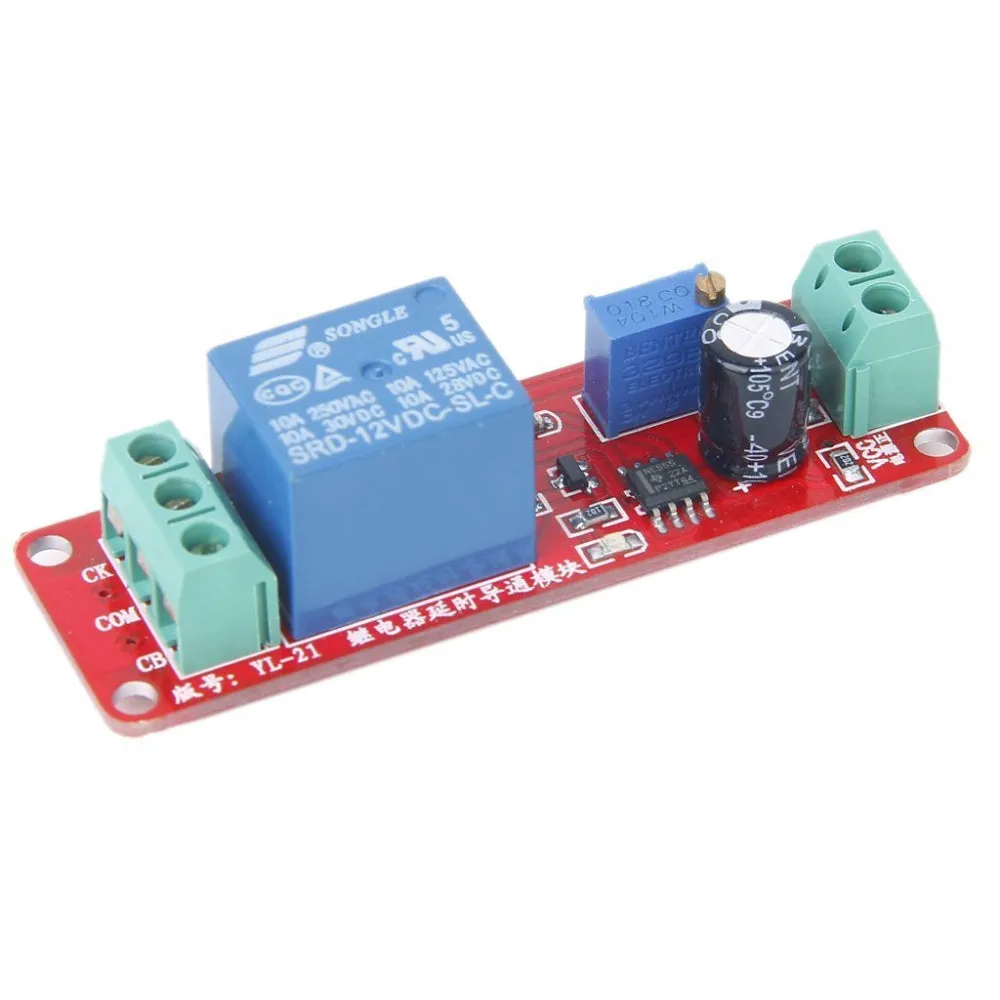

NE555 DC 12V Digital Delay Monostable Switch Module
This NE555 Delay Monostable Switch Module Time Delay Switch Delay On Vehicle Electrical Delay 12V, is based on the NE555 chip, high-performance timing CPU design. The power indicator LED and switch trigger timing indication LEDs. Timing from microseconds to long hours. Applicable to vehicle equipment-delay to prevent car ignition, and prevention of high sudden s to burn components and devices.This is a monostable generator based on the NE555 integrated circuit. It has an adjustable delay time from 0 to 10 seconds using the potentiometer or by changing the capacitance. It is also capable of controlling the device below 220V/10A.
Technical Details: NE555 DC 12V Delay Timer Relay Switch
- Trigger Current: 20mA
- Switching Voltage: 125V @15A, 250V @10A
- Load Capability: 2200W
- Length: 68mm
- Width: 22mm
- Height: 18mm
- Weight: 18g
- Additional Specs: AC Control Voltage 250V @max. 10A, DC Control Voltage: 30V @max. 10A
Features
- Precision Pulse Generation / Timing
- Monostable Operation
- Standby no power consumption
- Excellent temperature stability of 0.005%/°C
- Time adjustable via potentiometer, default range: 0-25 seconds
- Optocoupler isolation on the signal side for anti-interference ability
- Supports high-low level control signal applications
- Suitable for industrial control applications
Applications :
- Time Delay Control for Motors or Relays: Introduces a delay before activating motors or relays to prevent power surges or allow other components to initialize.
- Lighting Control: Delays turning on lights, useful in security systems to simulate occupancy or avoid sudden illumination.
- Pulse Generation in Timing Circuits: Generates a single pulse after a delay, used in timing circuits where actions need to be synchronized.
- Control for Alarm Systems: Delays the activation or deactivation of alarm systems, reducing the risk of false alarms.
Physical Attributes
- Length × Width × Height (mm) : 68 × 22 × 18
- Weight (gm) : 18
Package Includes
- 1 x NE555 DC 12V Digital Delay Monostable Switch Module Time Delay Switch
