Product Details
＋

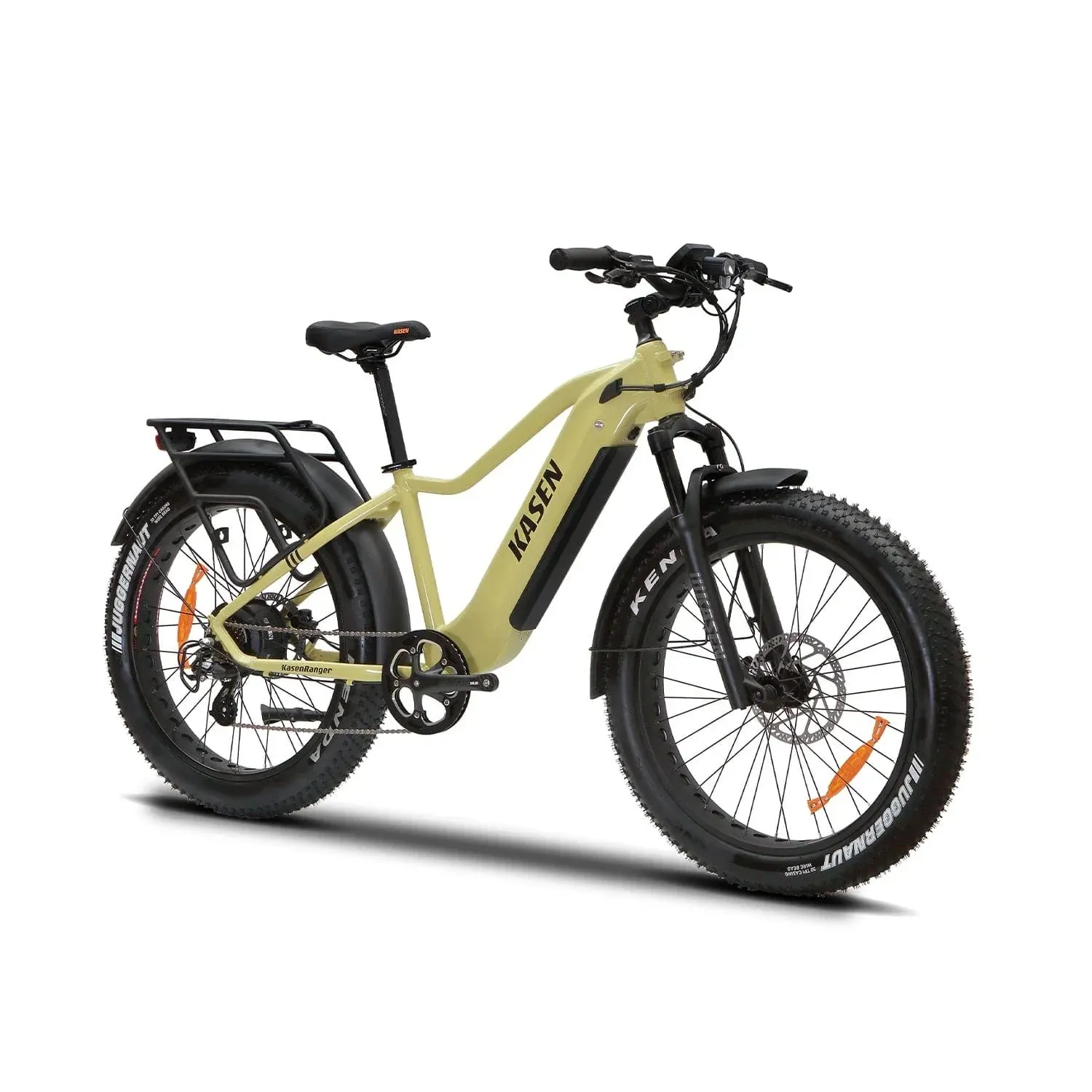

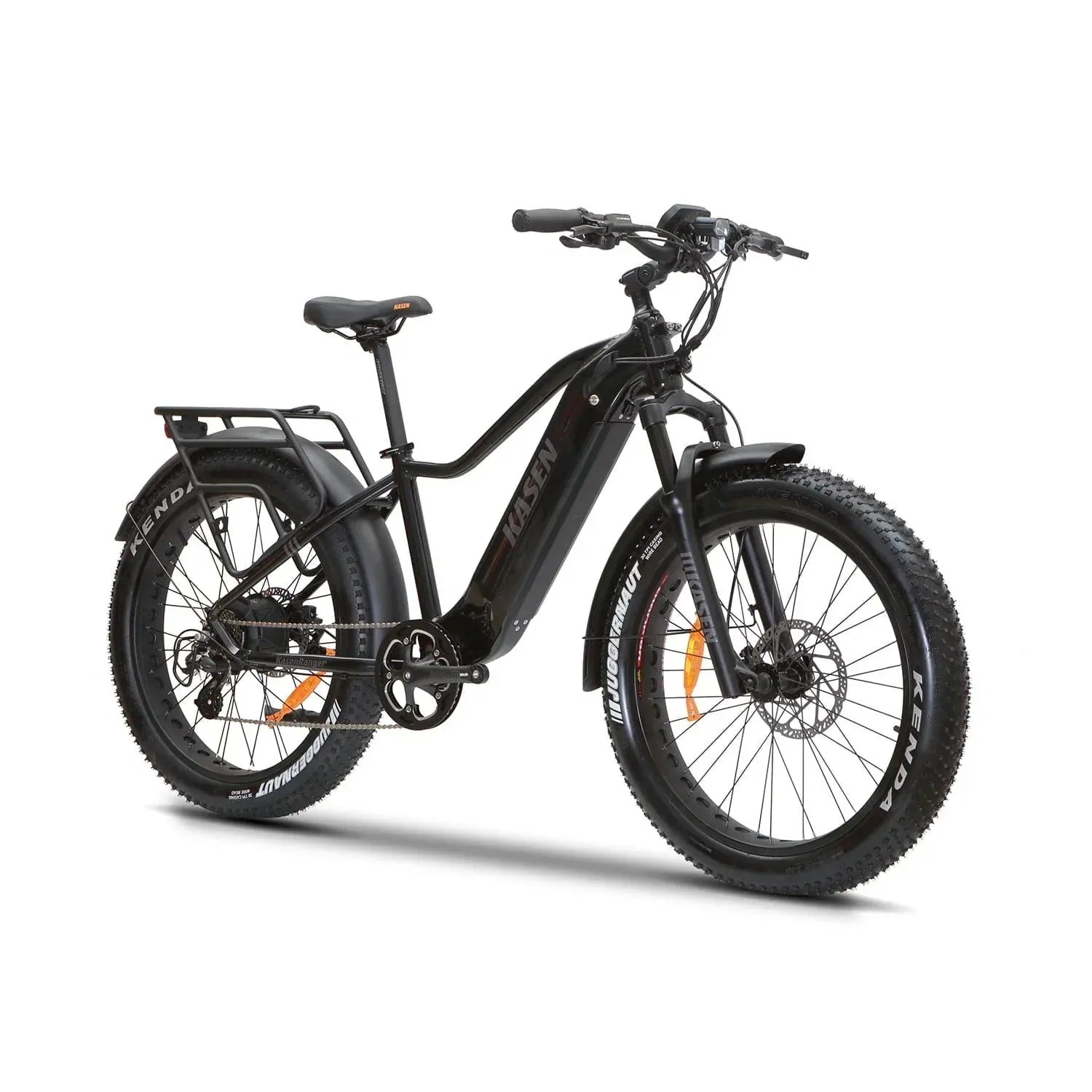

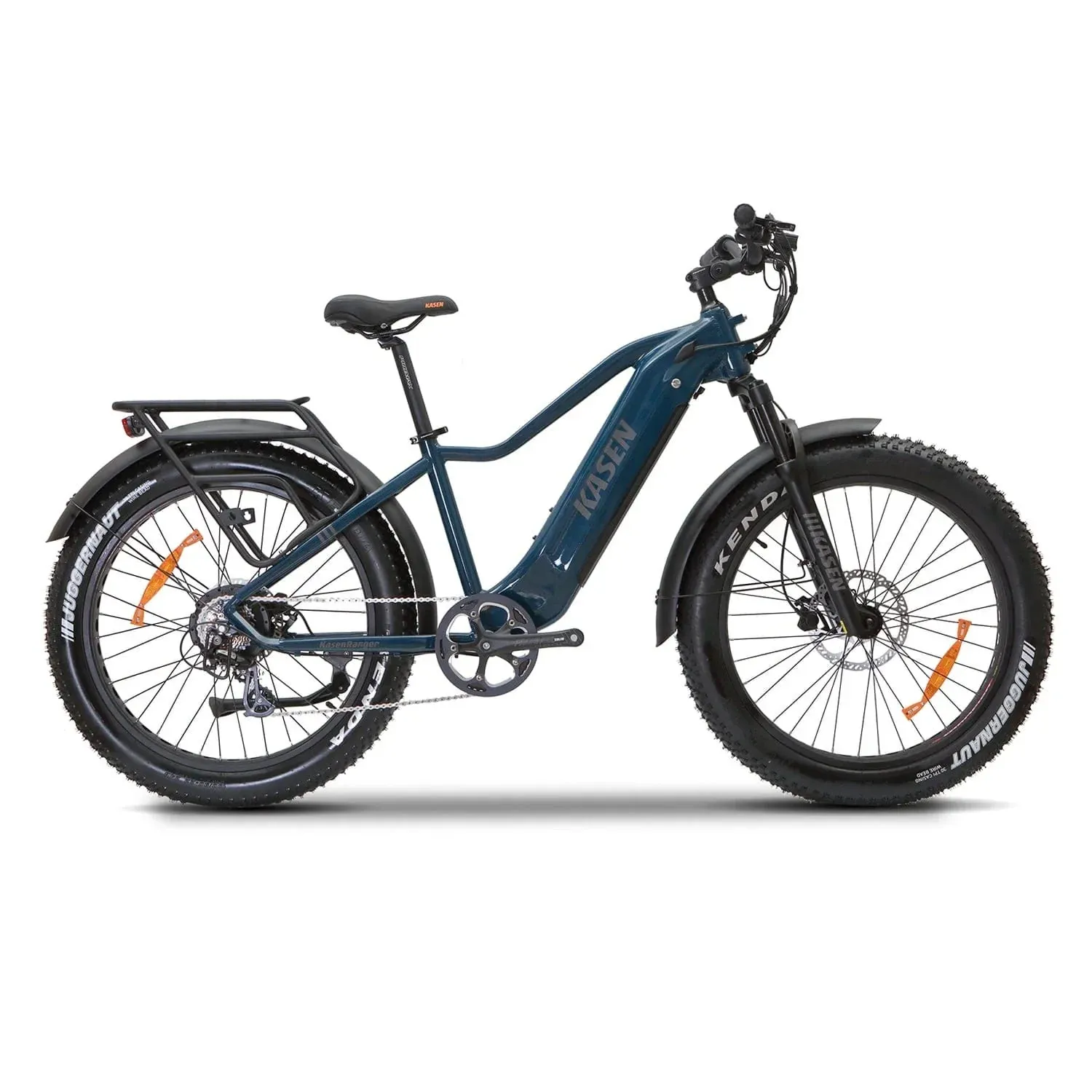

The KASEN Ranger Step Over eBike is a Fat electric bike with a powerful 1000 w motor and a long distance 48v 15 / 20 ah battery. With 26 inch Fat tires, 7 Speeds and Hydraulic brakes this Fat Tire Electric Beach Cruiser eBike is a Class 2 - 3, with a top speed up to 25 - 28 mph. An optimal distance of 55 miles and charge time of 4 - 6 hrs. This KASEN Ranger Step Over electric bike is 80lbs with a maximum cargo weight of 275lbs. The KASEN Ranger comes in the following colors: Black,Blue,Sand.
| Component | Details |
|---|---|
| Motor | 1250W (Peak) 1000W (Sustained), 48V Brushless Rear Hub BAFANG Motor |
| Battery | Removable Internal Lithium-ion 48V, 15AH (720WH)/20AH (960WH) SAMSUNG |
| Charger | 48V 3.0 Amp Smart Charger, 4-7 Hour Charge Time |
| Display | CloudDrive CDC6-PR02 Backlit LCD Display with USB |
| Controller | 48V, 1000W Frame-integrated Controller |
| Throttle | Thumb Throttle |
| Pedal Assist | Intelligent 5 level pedal assist with 24 magnet cadence sensor |
| Head Light | High output 80 LUX LED Headlight |
| Wiring | Water resistant connectors and wiring harness |
| Frame | 6061 Double-Butted Aluminum Alloy with Internal Battery |
| Fork | Hydraulic Fork, 100mm Travel, with lockout and preload adjustment |
| Brake | Tektro 203mm Front & 180mm Rear Hydraulic Disc Brake |
| Speed Gears | Shimano 7 Speed Shifter |
| Cassette | Shimano 14T-28T Cassette |
| Chain Wheel | KMC Rust Resistant Chain |
| Crankset | Prowheel 46T 175mm Crankset |
| Handlebars | Aluminum 31.8mm, 700mm Back Sweep 6 Degree |
| Grips | Durable Ergonomic Grips |
| Stem | Aluminum Alloy, 0-60 Degree Rise, 108mm Length, 31.8mm |
| Wheel Rim | Double Wall Aluminum 36h Front & Rear |
| Tires | KENDA 26X4.0 Front & Rear Tires |
| Saddle | Kasen Comfortable |
| Pedals | Wellgo Aluminum Alloy pedals |
| Rear Rack | 55lbs Rated Loading Weight with Pannier Side Mount |
| Mudguard | Full coverage front and rear |
| Seat Post | Aluminum Alloy 31.8mm 350L |
| Seat Clamp | Quick Release |
| Speed | Up to 28 MPH on Pedal Assist and 25 MPH on Throttle |
| Range | 45-55 miles |
| Charge Time | 4-7 Hour Charge Time |
| Weight | 80 lbs |
| Weight Limit | Maximum payload capacity 275 lbs |
