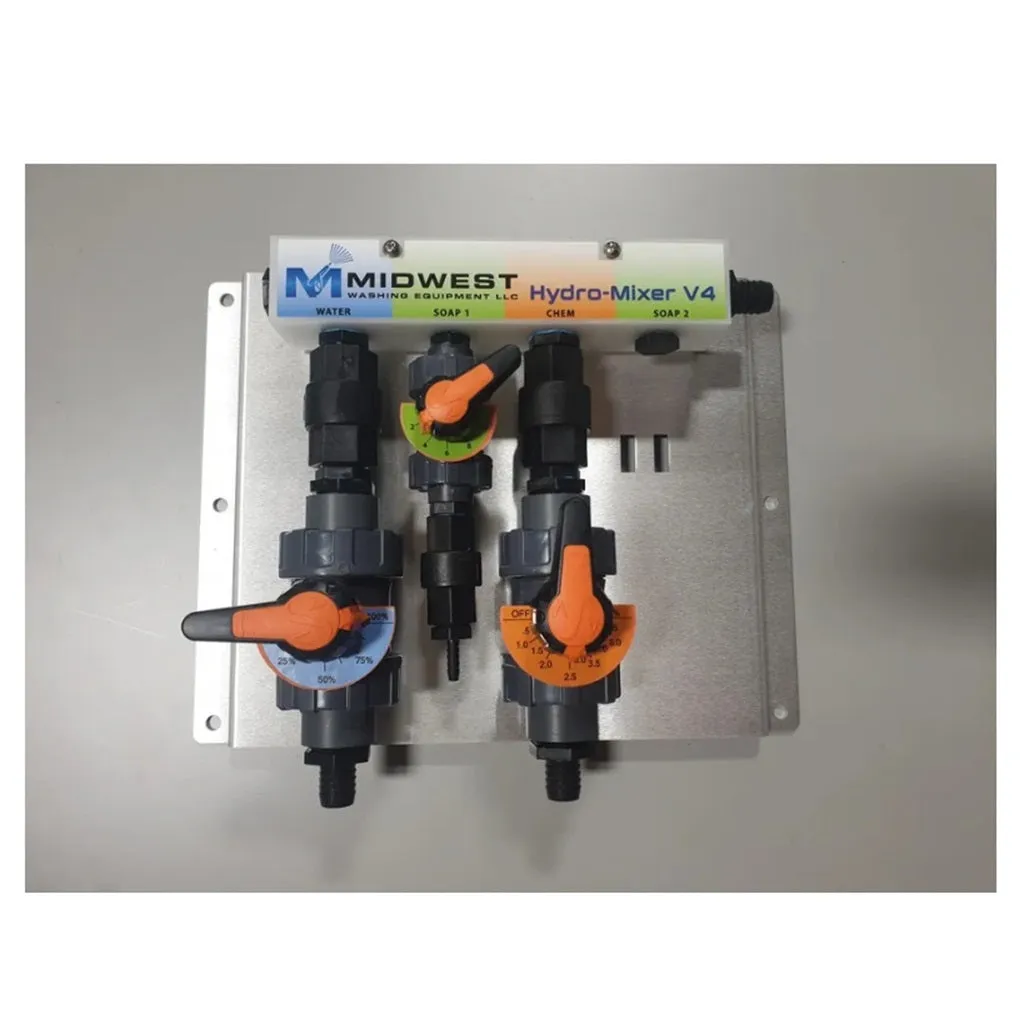

Hydro-Mixer HM-V4-34 Proportioning System

Updated and Improved. The latest innovation in soft wash technology from MWE.

Built and optimized for 12 Volt pumps up to 7gpm with 3/4 Valves and 1/2" Barbs.

*Can be used with other pump configurations ie: 3gpm to 5gpm.

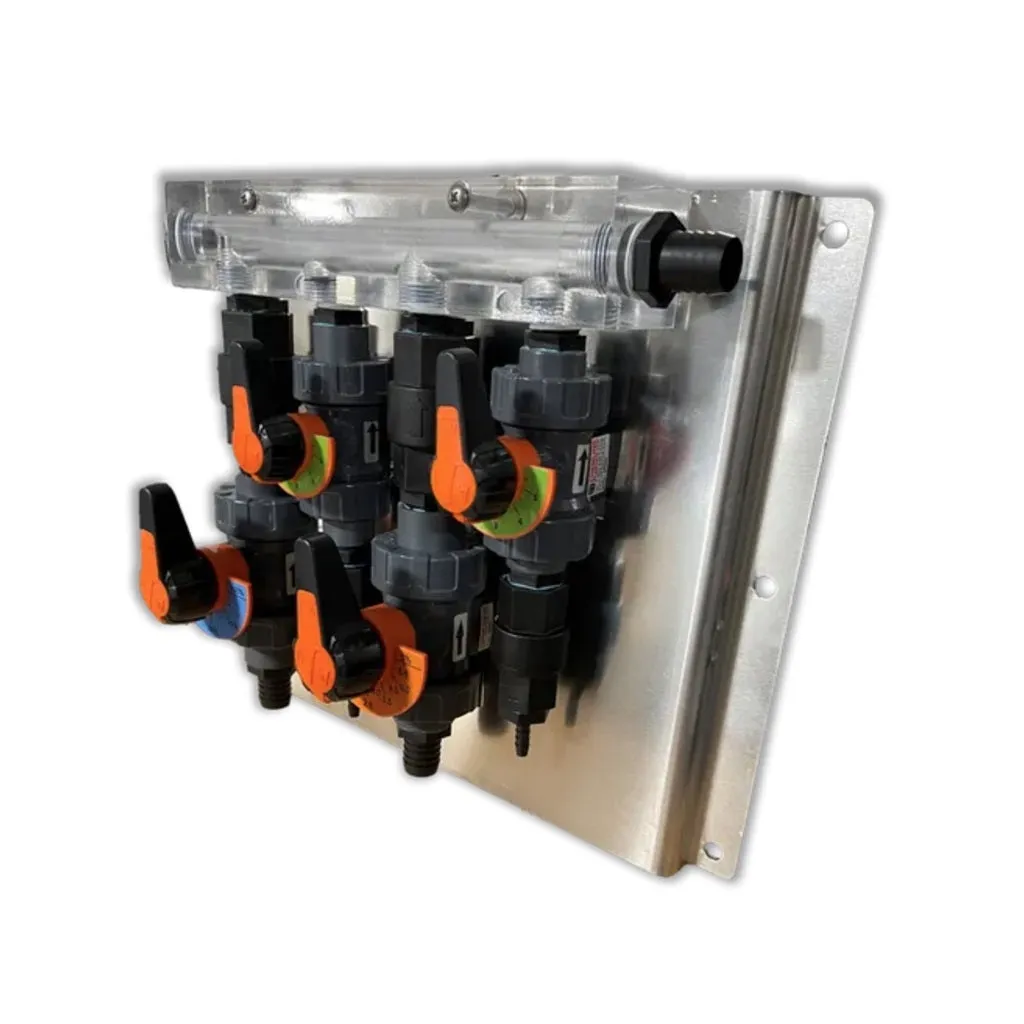

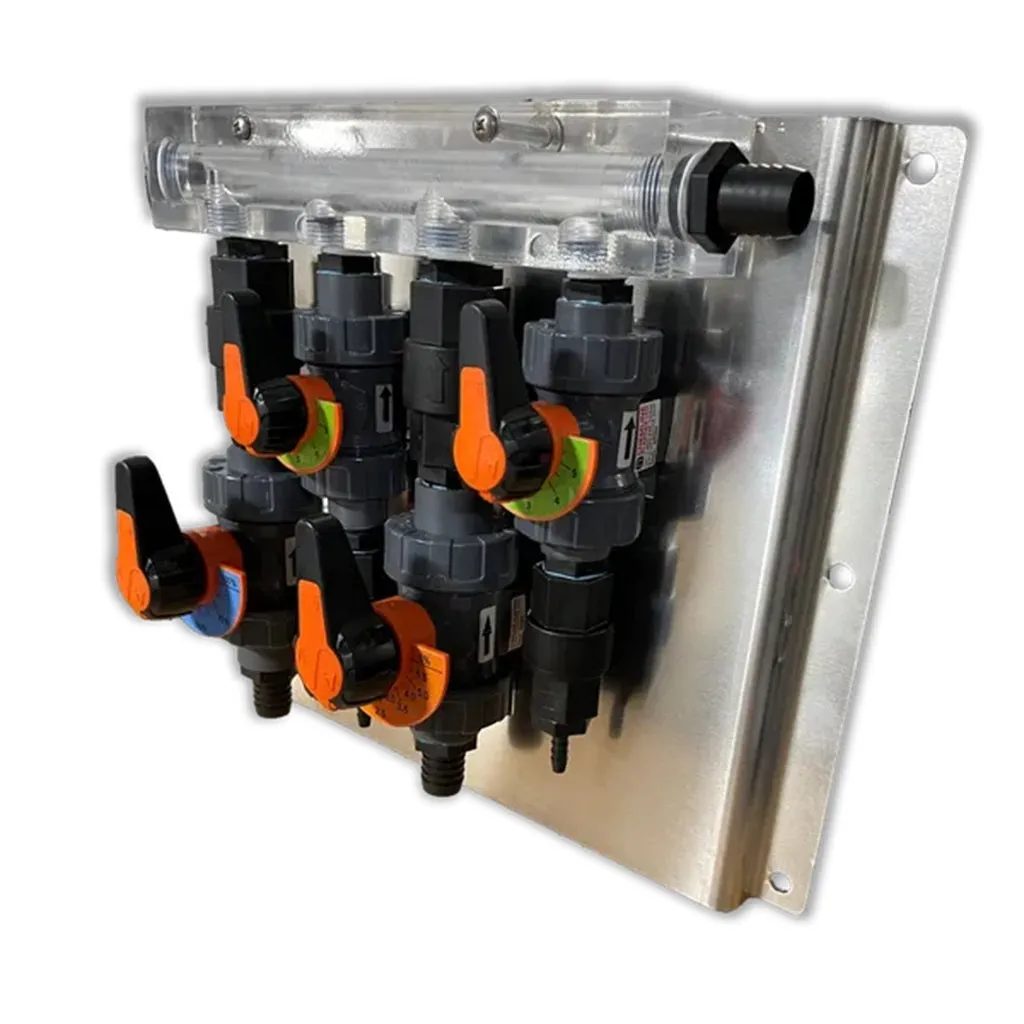

Transparent clearview model now available.

**Only use teflon tape with ClearView Manifolds**

Key Features:

• Solid one-piece polypropylene manifold
• 4 inlet ports and 2 outlet ports
• Sturdy aluminum plate with mounting holes for easy installation.
• Standard model Includes two metering valves for water and bleach (SH), and one precision soap needle valve for surfactant.

• Valve indicator for accurate and visual % mixing.
• Precision soap metering.

XL comes standard with high flow metering valves.

• QTY: x1 water metering valve (3/4")
• QTY: x1 chem/SH metering valve (3/4")

• QTY: x1 soap metering valve (1/2") - Optional 2nd soap valve available

Standard connections are:

• 1/2" Water & Chem Barbs
• 1/4" Soap Barb


Options:

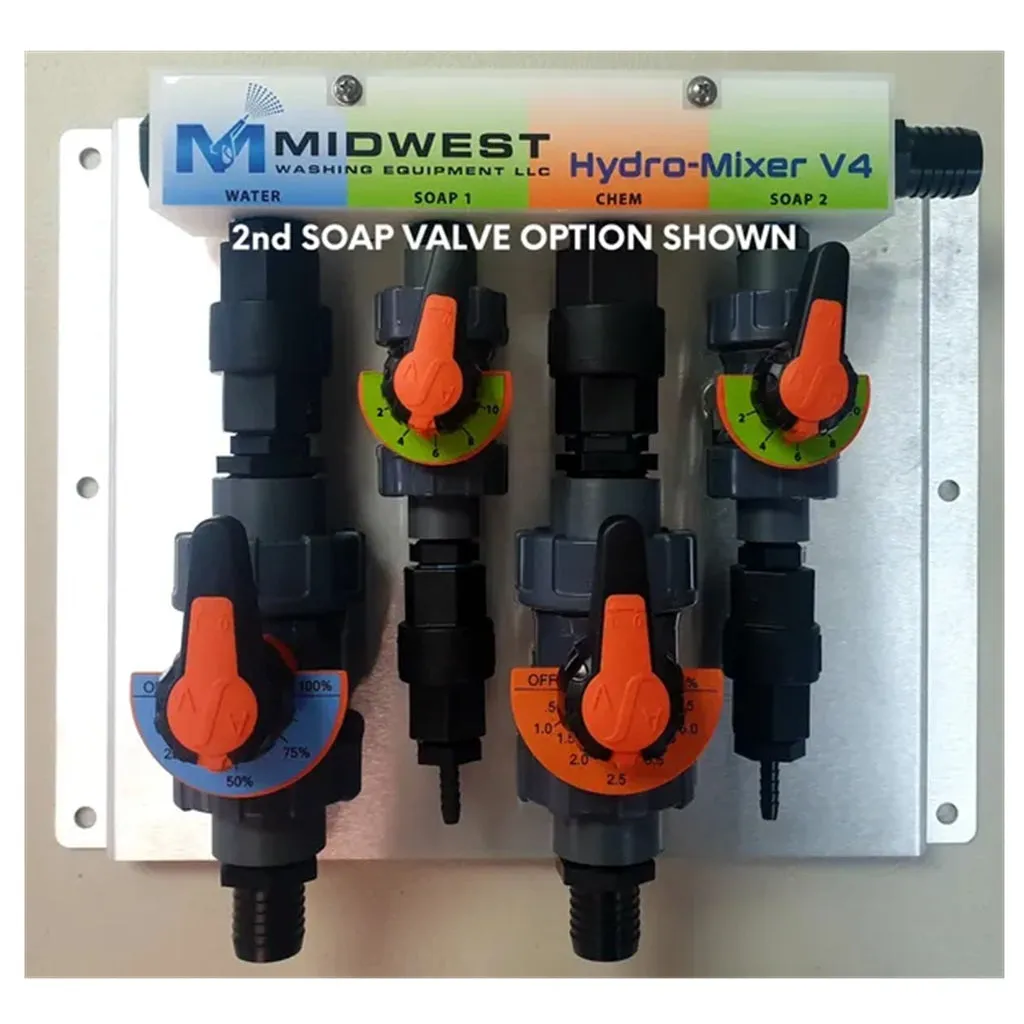

• Optional 2nd soap metering valve available.
  • Run 2 soap products simultaneously
  • Eliminate moving your soap line between tanks
  • Run a surfactant and degreaser or neutralizer/rinse aid.
• Optional aluminum storm guard.

Fully Assembled and Tested: Arrives fully assembled and tested for immediate use.

Warranty: 1-year warranty on the entire unit and a 5-year warranty on the polypropylene manifold.

Add-On Accessories:

• - Highly recommended for the longevity of the pump and system components.
• - Fits Hydro-Mixer Mounting Plates and Remote Modules
