| Product Attribute | Attribute Value |
|---|---|
| Actuator Type | Roller Plunger |
| Body Style | Miniature |
| Contact Form | SPDT-BBM |
| Current Rating | 10 A |
| Head Type | Plunger |
| Material | Zinc (Housing) |
| Mounting Hole Size | 0.2 " |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 5.1 lbs. |
| Series | |
| Type | Limit |
| Voltage Rating | 250 VAC |
Overview

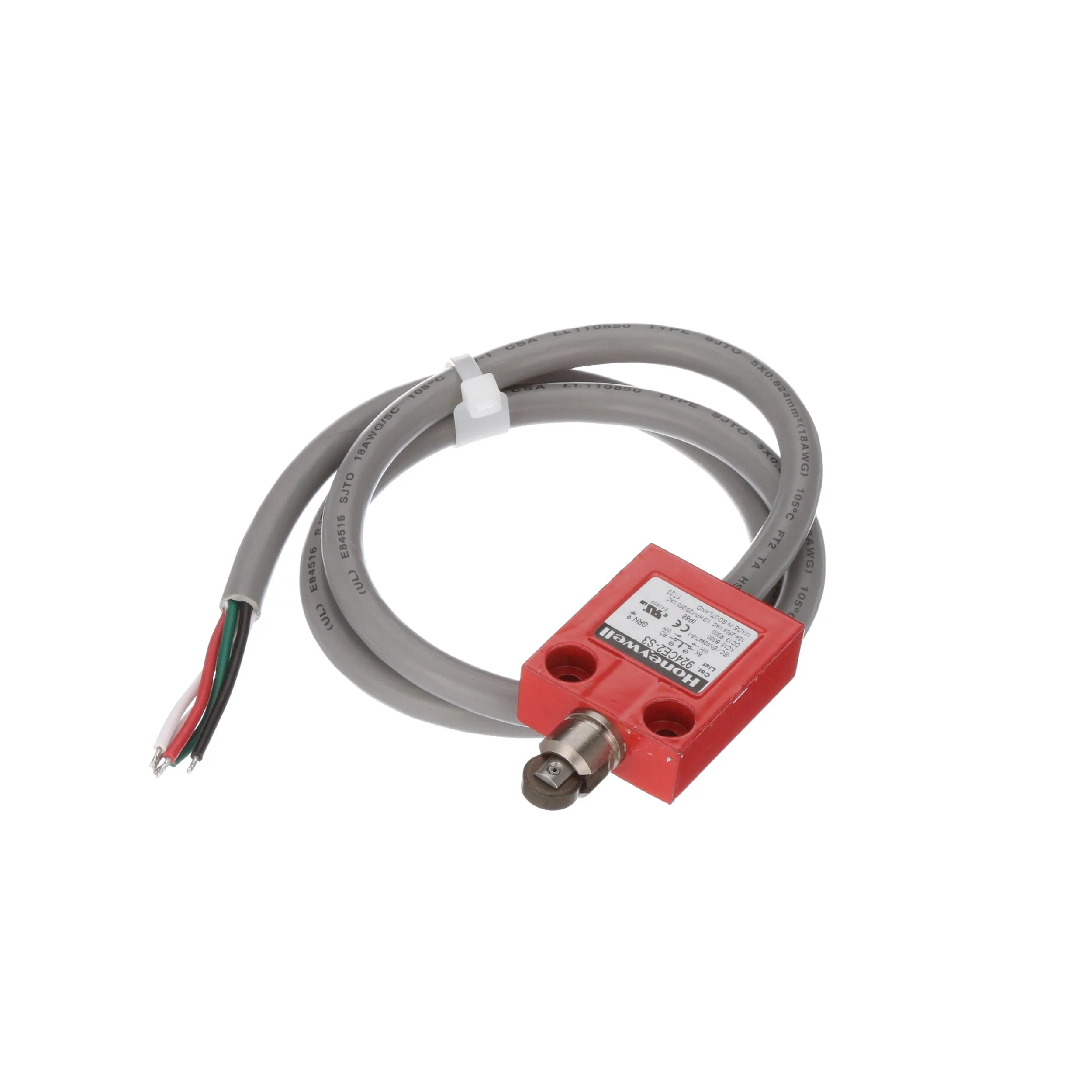

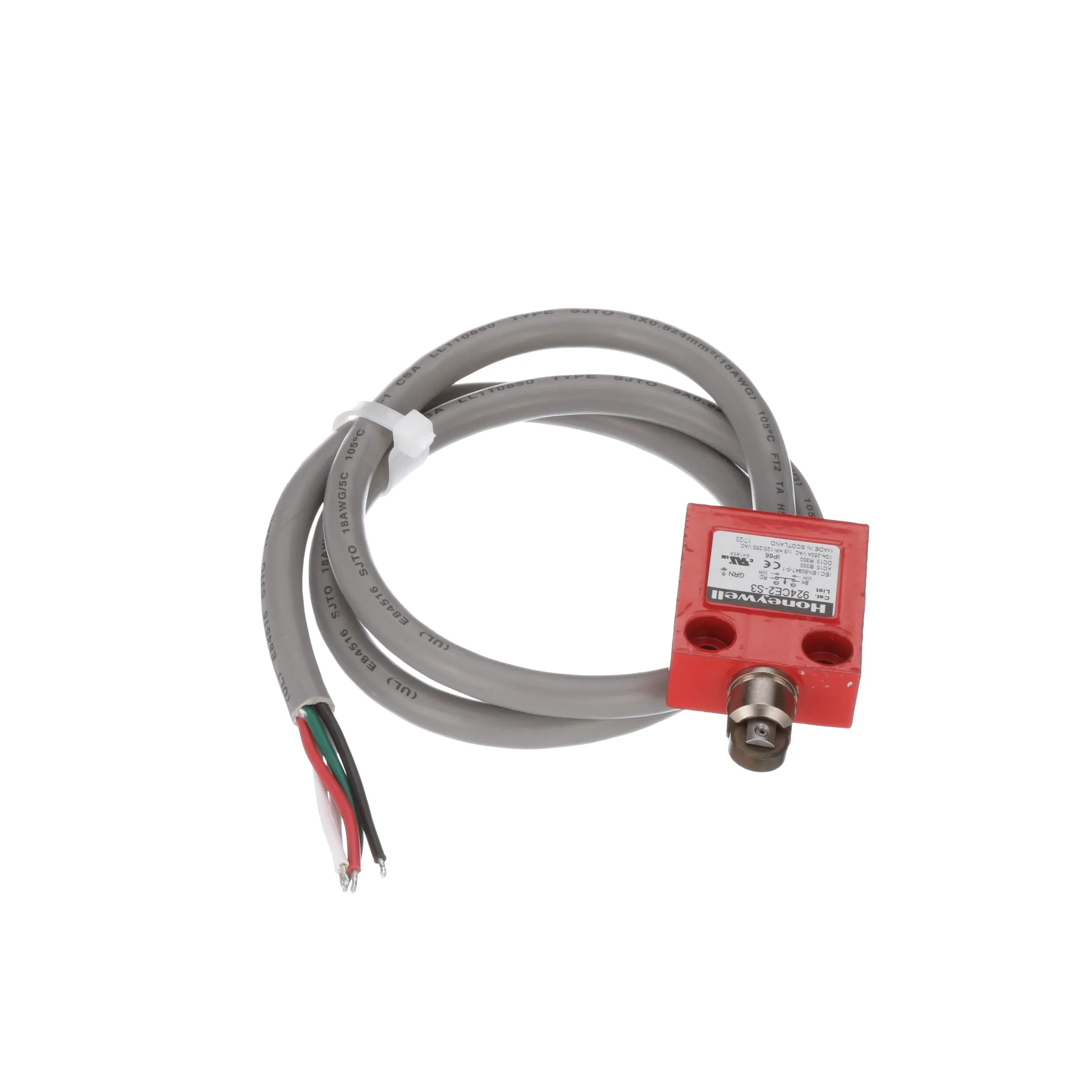

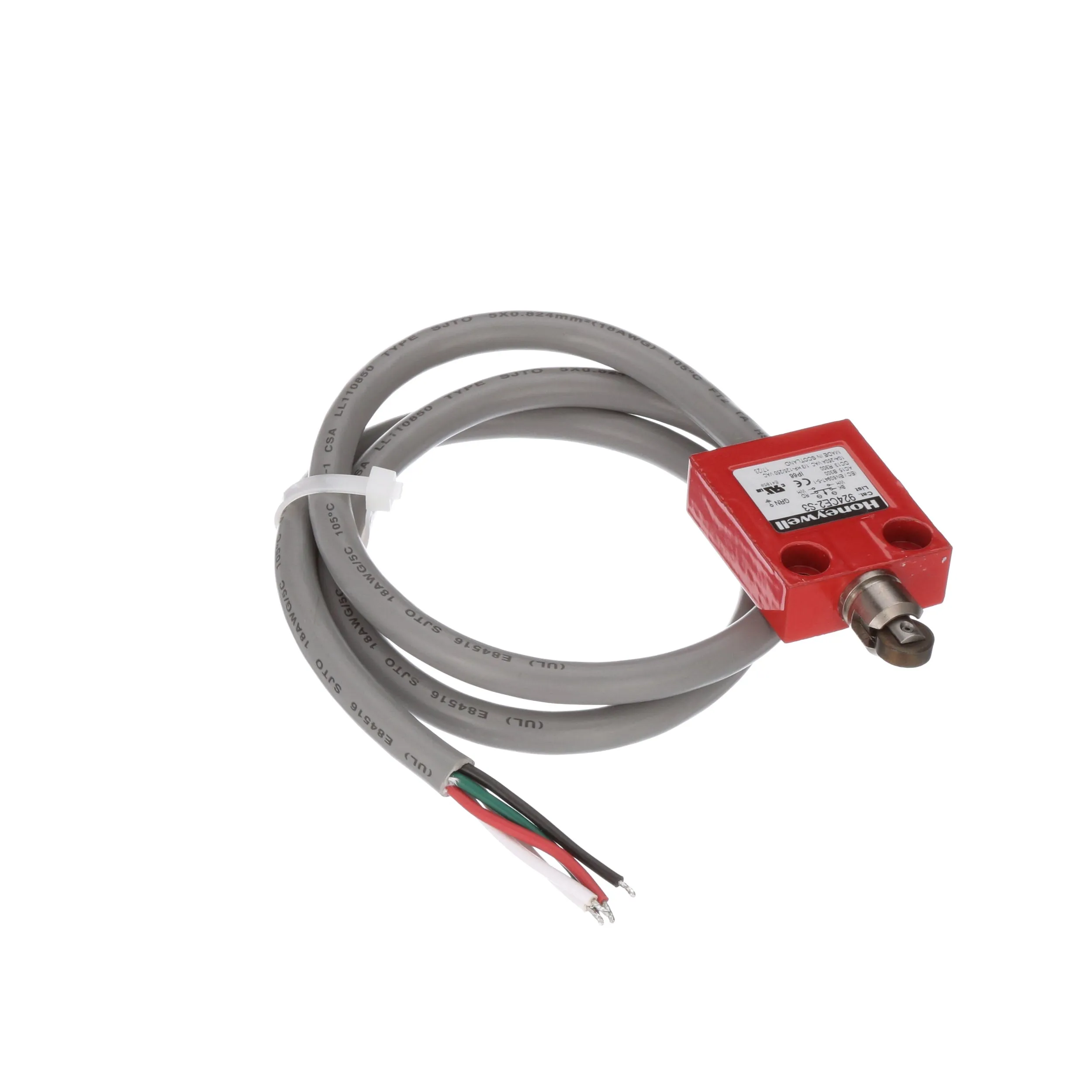

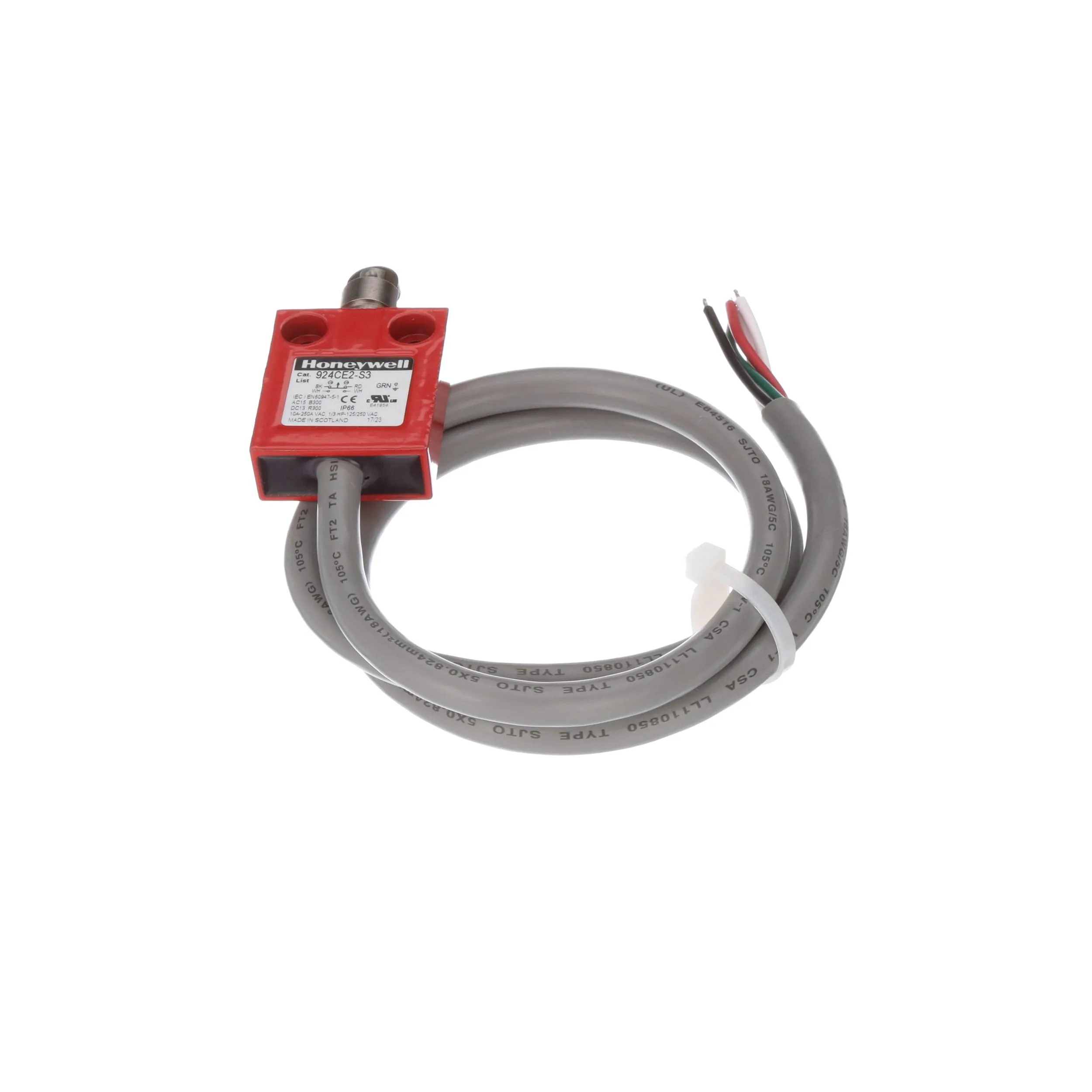

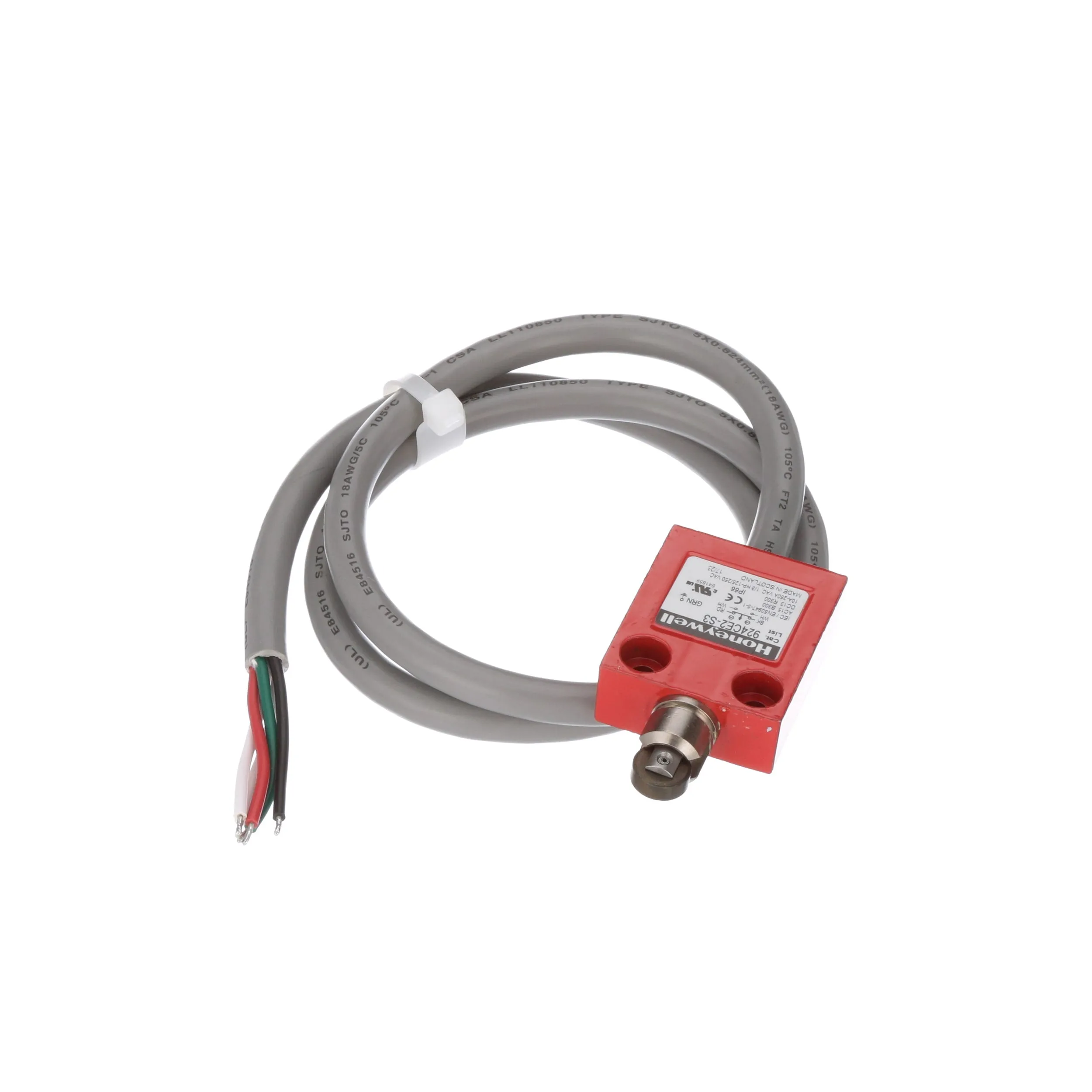

Miniature Precision Limit Switch, 10 A Rated Current, 250 VAC Rated Voltage
The 924CE Series has been tested and approved to meet the requirements of the Low Voltage directive and positive opening safety contacts per IEC/EN 60947-5-1-3. The devices are CE marked. The red color clearly differentiates this safety component in the application. The 924CE range also has UL and CSA approval. It is possible for the end user to enhance the safety level of these switches from Category 1 per EN 954-1 on their own to Categories 2, 3 or 4 per EN 954-1 when the switches are used in conjunction with our wide range of FF-SR safety control modules to form a safety system. Typical applications for these switches would use the roller plunger 24CE18 style in conjunction with cams on doors with hinges. Also available are a range of panel mounting or top mounting versions to ensure that small space or difficult mounting can be simply achieved. Several contact arrangements are available.
