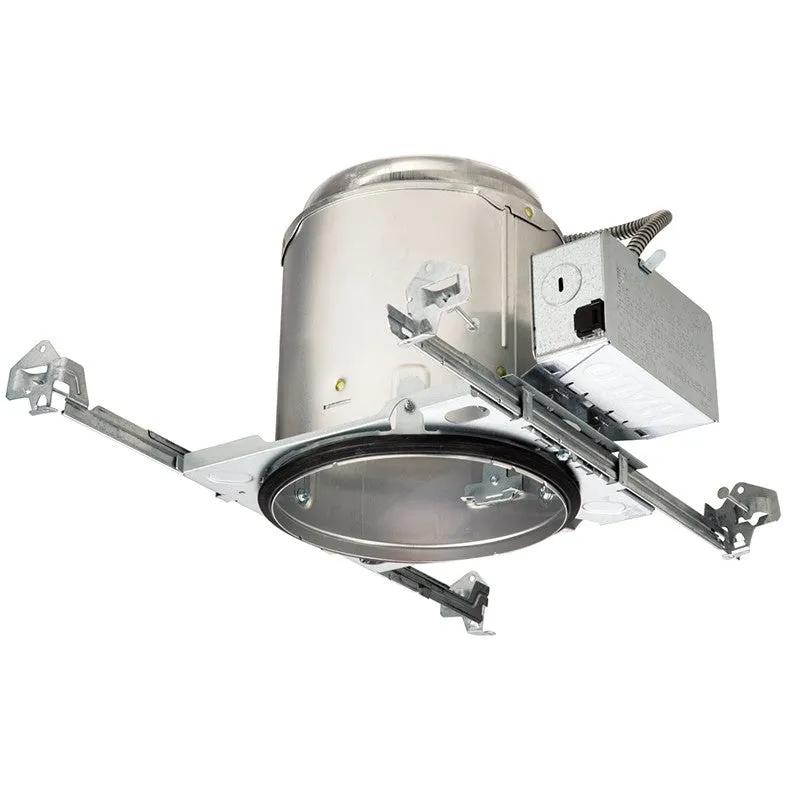

\Recessed 6” aperture new construction housing for use with LED integrated trims or modules. Suitable for 2x8 residential framing or commercial plenum construction, type IC rated and can be used in direct contact with insulation. Airtight rating reduces airflow between living spaces and unconditioned areas providing additional energy savings.

Features

• Trim sold separately
• Single wall precision rolled aluminum housing with interlocking construction maintains concentricity
• Adjusts vertically to accommodate 3/8” to 1” thick ceilings and locks in position with (3) setscrews
• Compact galvanized steel plaster frame with integral bar hanger receivers
• Compact galvanized steel junction box with 16in³ internal volume
• (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
• Hinged door with offset cover for easy wire access
• Junction box is repositionable 90° on plaster frame to avoid obstructions

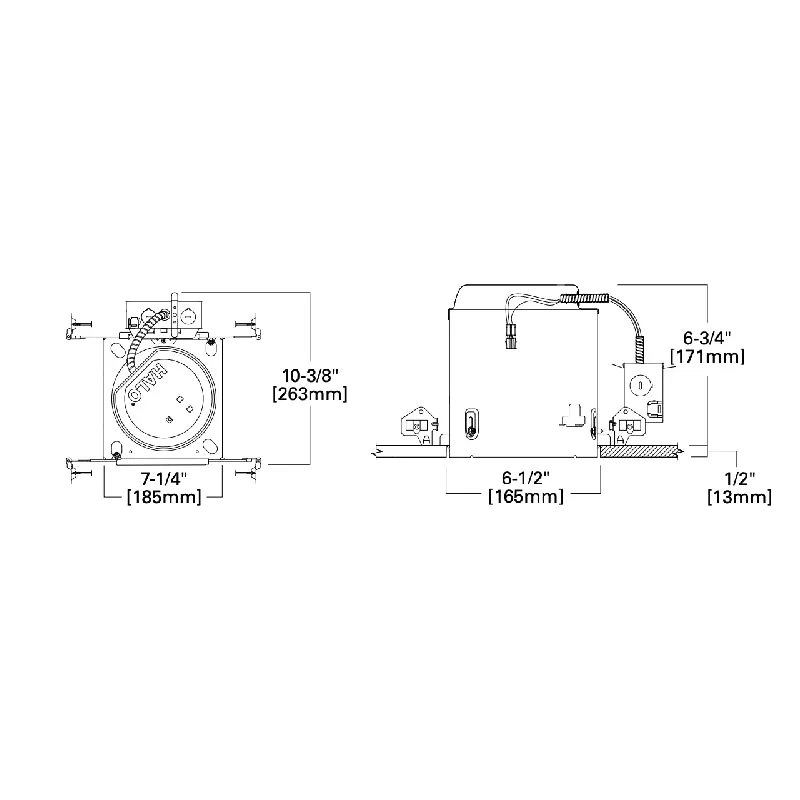

Dimensions

• Width: 10.38"
• Height: 6.75"

Warranty

• Five-year limited warranty
