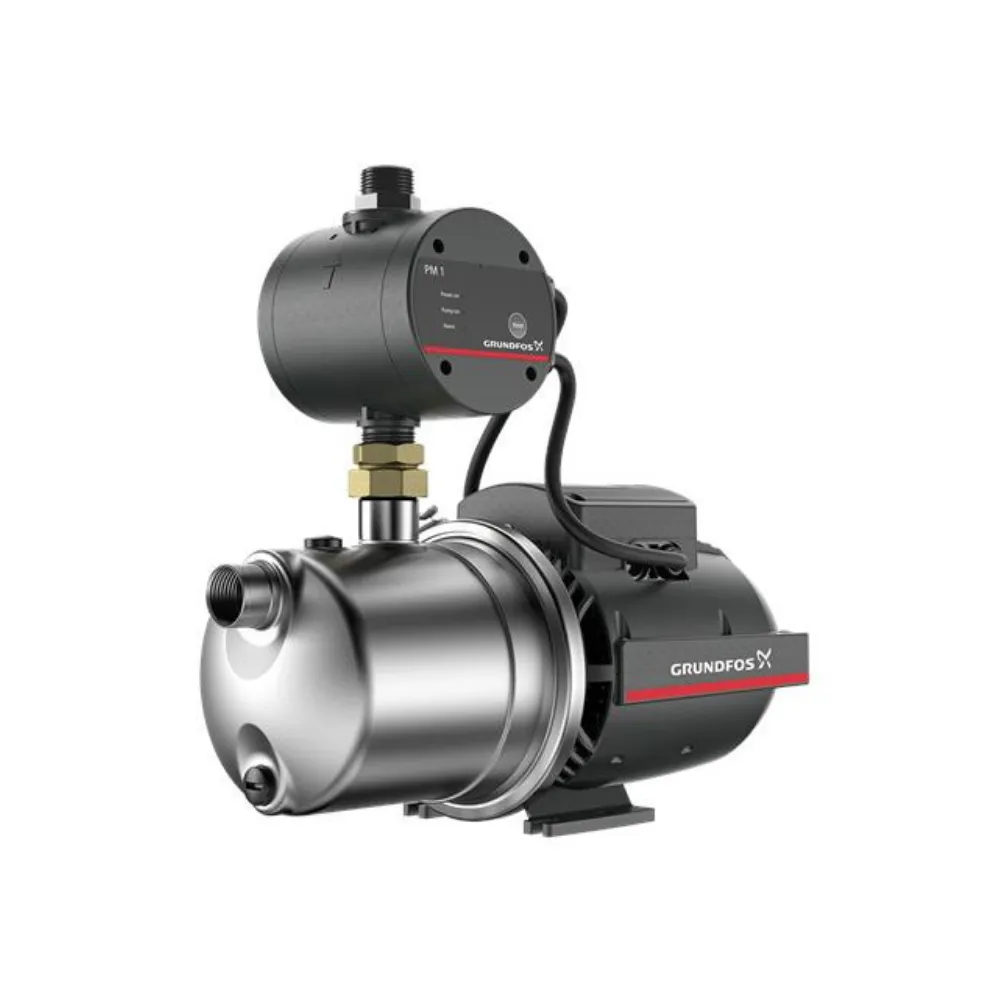

The Grundfos JP PM consists of a PM1 1.15 and a self-priming, single-stage centrifugal jet pump, replacing the old JPC range with identical connections. The JP is designed for domestic use and ensure a supply of clean, rainwater or potable water to households and gardens.

Suitable for:

• Domestic ground water intake
• Domestic water pressure boosting
• Domestic rainwater harvesting

Components:

• Self-priming JP pump (see pump characteristics below)
• PM1 1.5 wired to the pump
• Automatic start/stop of the pump: > start pressure of 1.5 bar
• Dry running protection
• Anti-cycling protection
• Non-return valve integrated
• Cable 1.5m with plug
• Union Fitting, for connecting pump and PM1

The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running. The Grundfos JP is also available as a bare pump with no controller.

• Self-priming- With a suction-lift up to 8 metres, this pump is ideal for transferring water from wells or ground tanks. This feature makes this pump ideal for a large variety of installations.

• Robust design- The materials of the pump are lightweight and ensure excellent corrosion resistance.

• Protective features- The Booster version incorporates functions to protect both the pump and installation. These protective functions are dry running protection and cycling alarm.

• Stable operation- The pump ensures stable operation with excellent suction capacity even when there are air bubbles and small sandy impurities in the water.

• User friendly interface- The booster versions includes a user-friendly interface with LED indicators which shows, power on, pump running and alarm indication.

The performance of your Grundfos pump is reliant on selecting the right pump for the site conditions and situation. Our retail shop staff have many years of pump experience and are happy to help you select the right pump for your application. Please contact us for assistance.
