Description

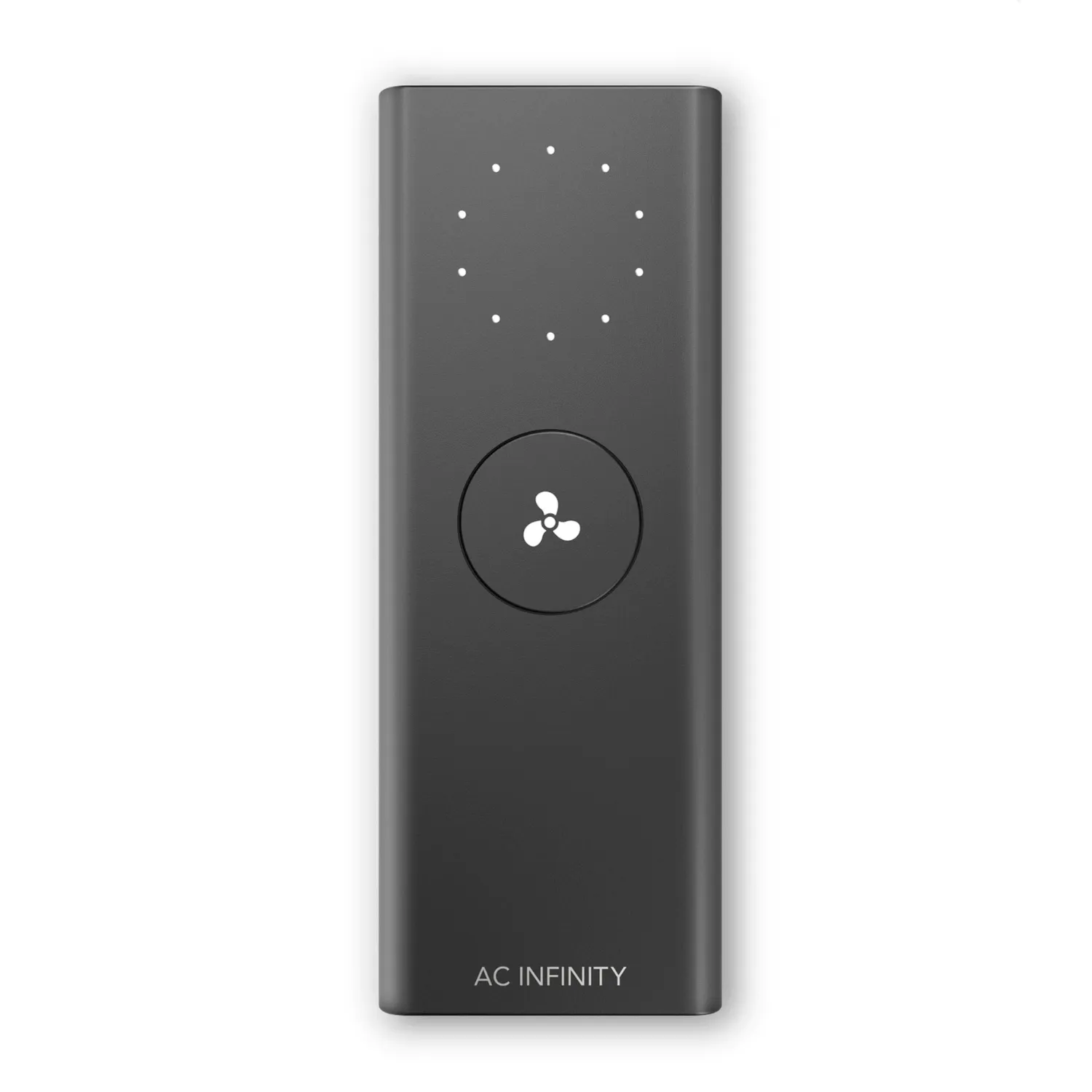

Fan Controller: This wireless speed controller is specifically designed for AC Infinity fans used in HVAC or growing applications. It allows for easy remote adjustment of fan speed using PWM controls, ensuring optimal airflow and noise management. The controller features 10-speed programming with clear white LED indicators and includes a backup memory to retain speed settings. It can also control multiple fans simultaneously when paired with additional receivers (sold separately). Compatible with AC Infinity EC motor fans from the CLOUDLINE, AIRLIFT, CLOUDWAY, and CLOUDLIFT Series.

Variable Speed Controller: Upgrade your existing wired speed controllers with this remote controller and receiver kit. Utilizing PWM technology, it allows for precise adjustment of your AC Infinity fan speed, optimizing airflow and noise control. The controller features 10-speed programming, indicated by a circular array of white LED lights. The built-in memory chip retains speed settings even when power is shut off. Please note that only one receiver or wired controller can be used with each fan at a time and cannot be used together.

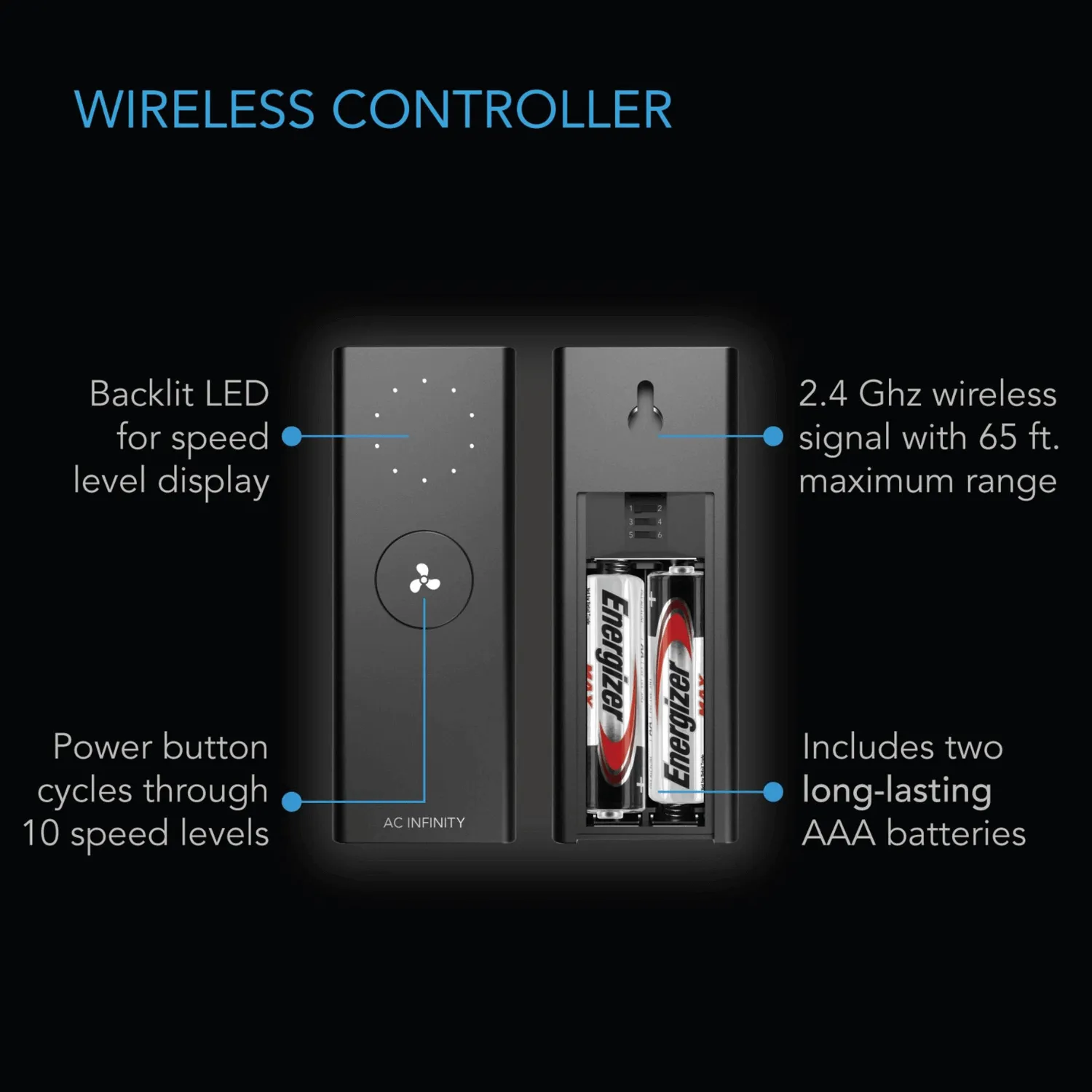

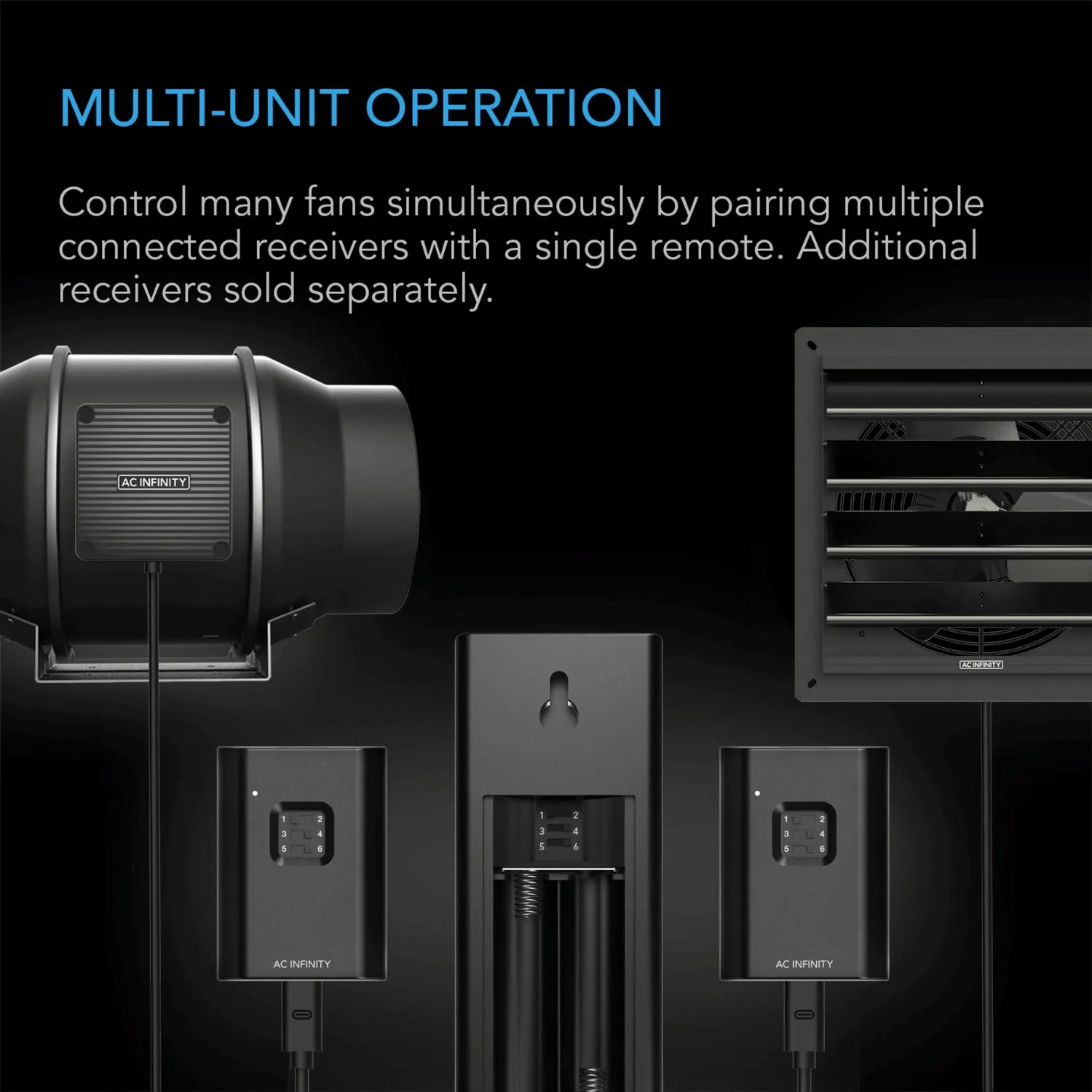

Wireless Remote Control: Powered by two AAA batteries, the remote speed controller communicates with the receiver using a 2.4 GHz signal. Simply match the three pins in both pieces of the remote kit and successfully pair them together. This allows you to transform your blower unit into a wireless exhaust fan and adjust fan speed from up to 65 feet away. Connect and pair multiple receivers with a single remote controller to set speeds of many fans at the same time. Additional receivers are sold separately.

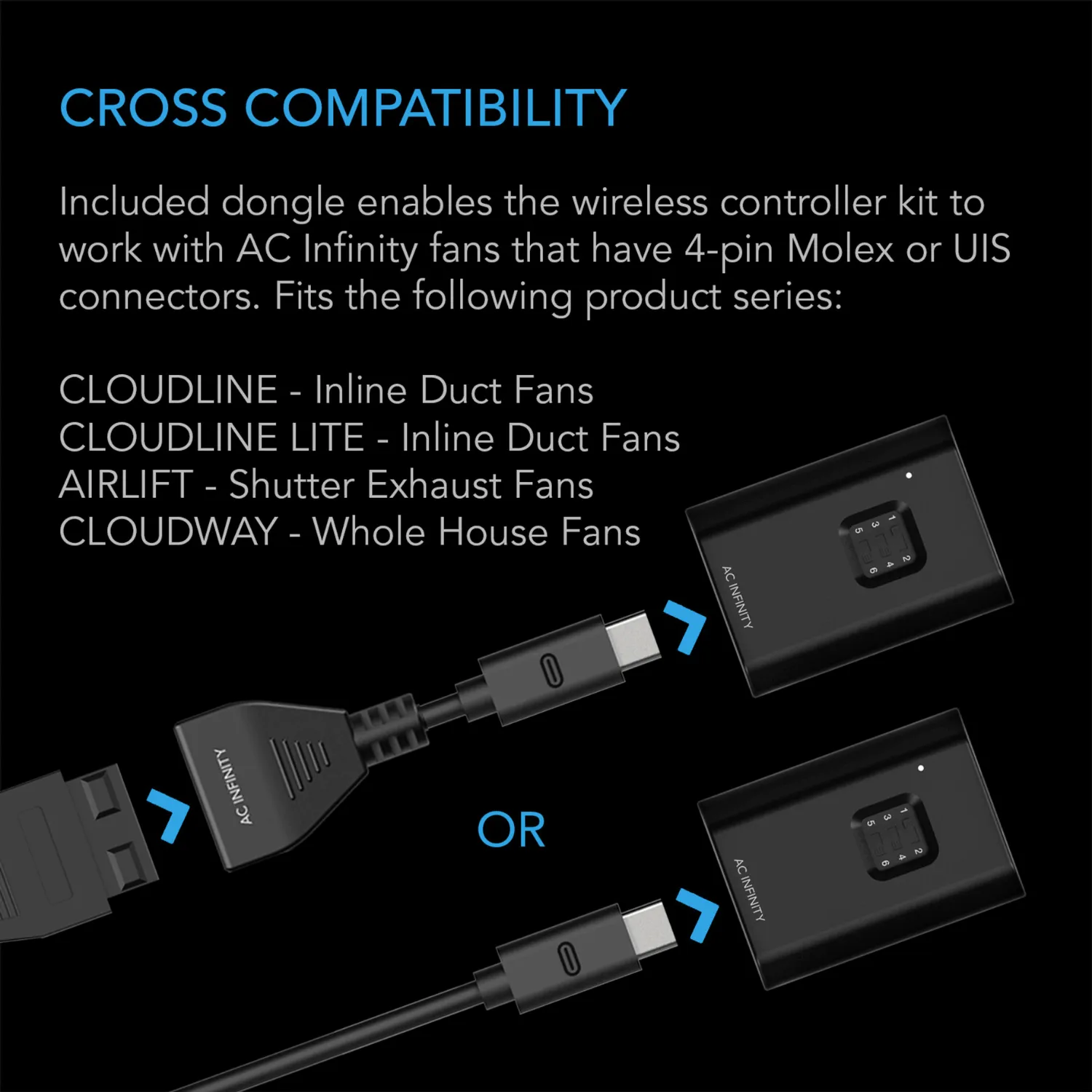

Each wireless fan remote kit includes a dongle that enables use with AC Infinity fans equipped with UIS and Molex connectors. Compatible EC-motor cooling fans include:

- CLOUDLINE Series: Inline Duct Fans

- AIRLIFT Series: Shutter Exhaust Fans

- CLOUDWAY Series: Whole House Fans

- CLOUDLIFT Series: Floor Wall Fans

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: CONTROLLER 63

Product Model: CTR63A

UPC Code: 819137021730

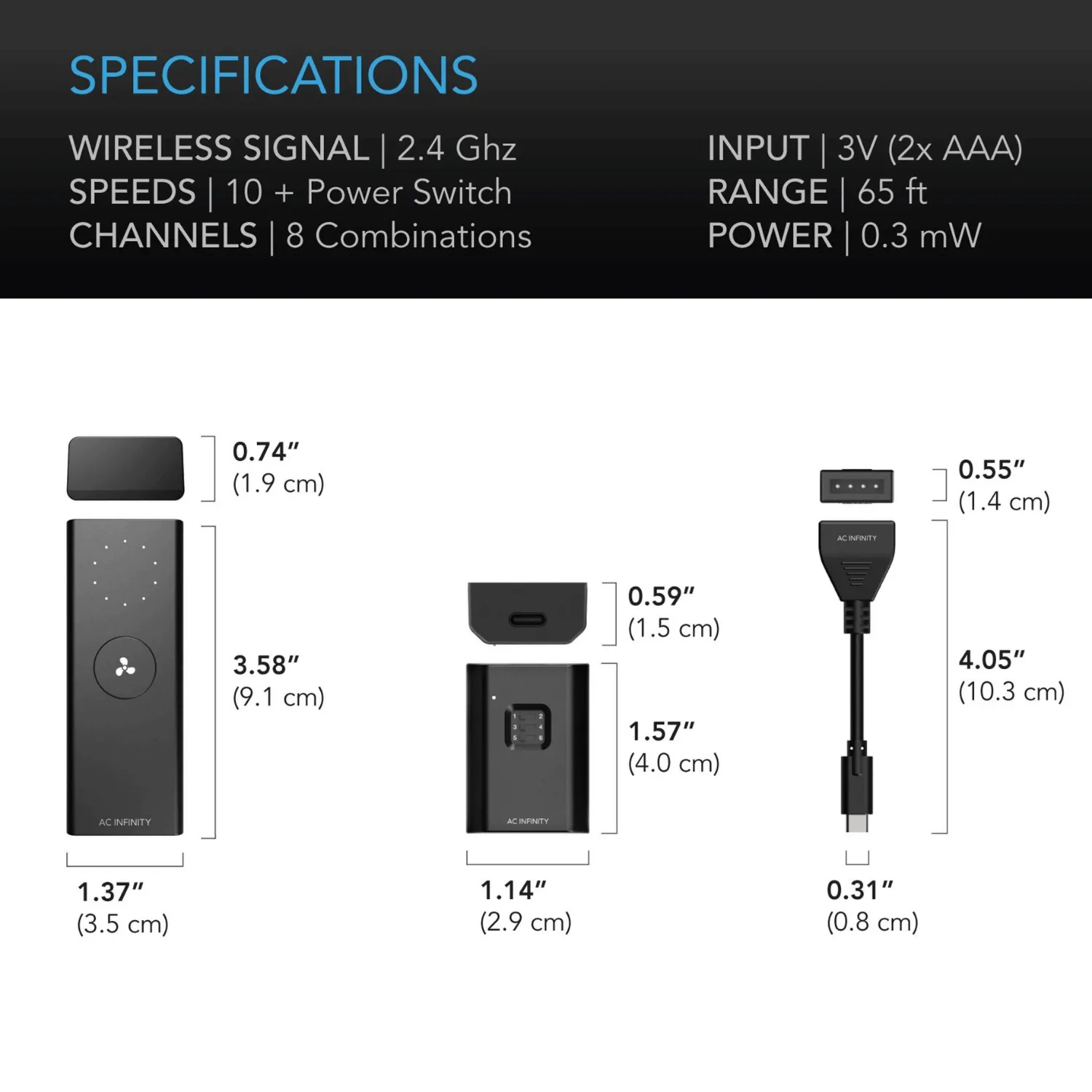

Product and Mounting Dimensions

Controller Dimensions: 3.59 x 1.37 x 0.75 in. (9.1 x 3.5 x 1.9 cm)

Receiver Dimensions: 1.14 x 1.57 x 0.59 in. (2.9 x 4.0 x 1.5 cm)

Mounting Hole Size: Ø 0.25 in. (Ø 6.5 mm)

Product Performance and Technical Specs

Maximum Fans Controlled: 1

Wireless Signal: 2.4 Ghz

Signal Range: 65.62 ft. (20 m)

Included Adapter: 4-Pin Molex to UIS

Adapter Length: 4.07 in. (10.3 cm)

Operating Humidity: 35 to 85% RH

FCC Cert. (Whole Product)

Product Manual PDF

Speed Controller

Operating Voltage: 2 to 3.6V

Max Current Supported: 0.1 mA

Power: 0.3 mW

Receiver

Operating Voltage: 8 to 15V

Max Current Supported: 10 mA

Power: 100mW

Data Sheet

Download the Product Manual:

Download the FCC Certification:
